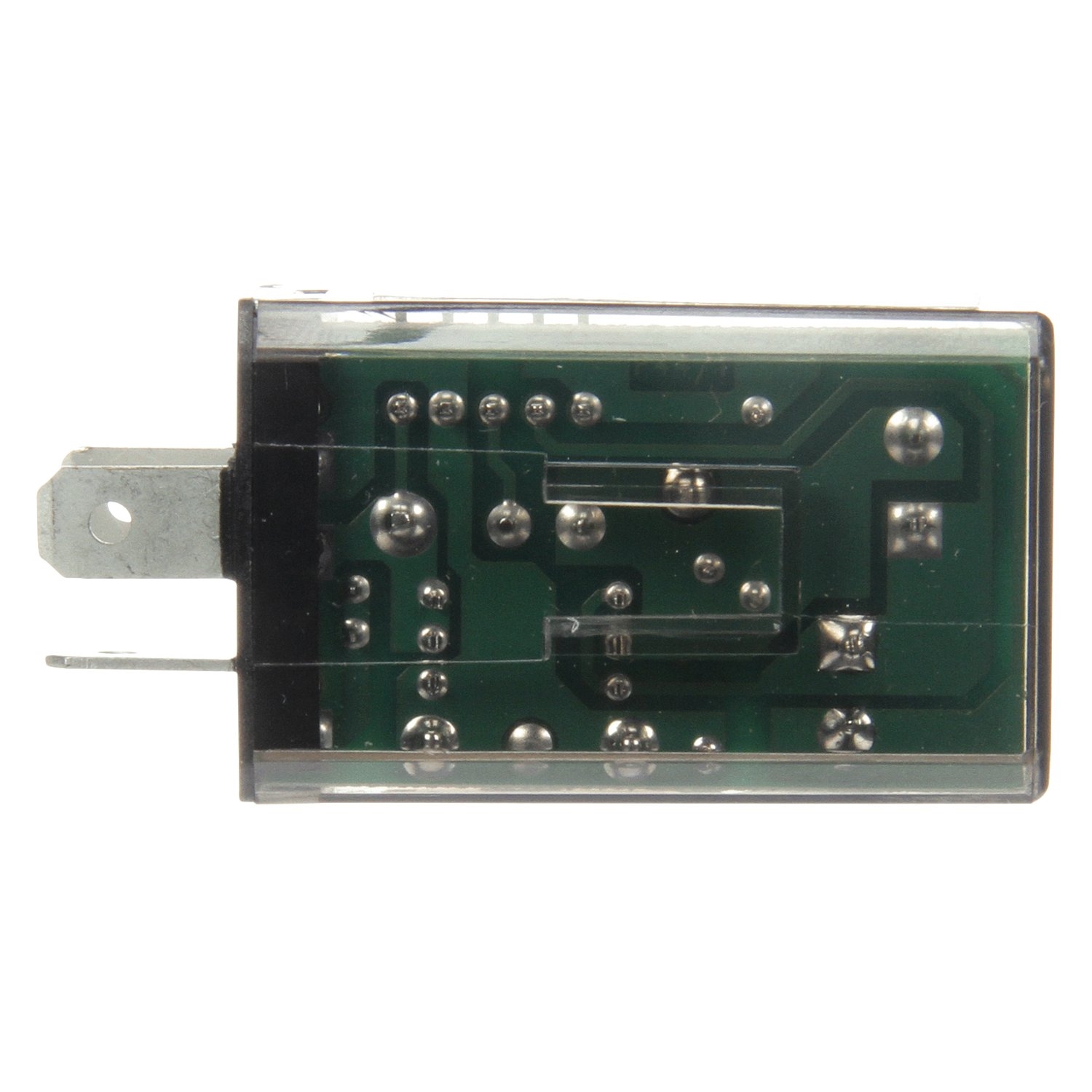

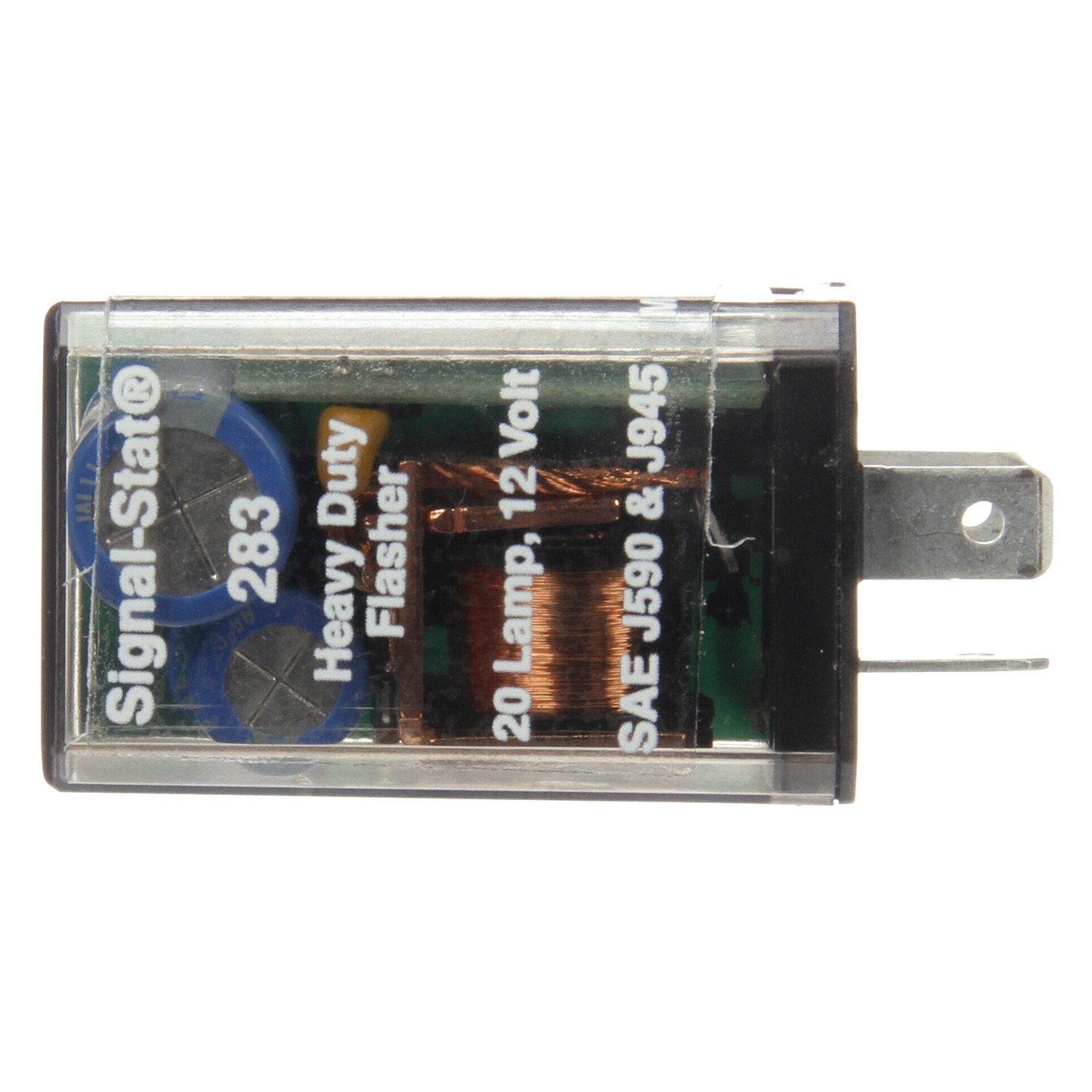

SIGNAL-STAT, 20 LIGHT ELECTRO-MECHANICAL, PLASTIC FLASHER MODULE, 70-120FPM, 12V, 3 BLADE TERMINALS
$31.67
Special Order Upon Request
Technical Specifications
283
13 lb 5 oz
0724956848331
034-006-029
Replaces Truck-Lite 97205-97209
Features ISO relay with electronic control circuits
Five available versions include 16-lamp with 2- or 3- terminal, 20-lamp with 2- or 3- terminal and alternating 10-lamp with 3- terminal
Functions at 13v for 36 continuous hours with 16-32 cp lamps at 35 amp max (#182 and 183), 20-32 cp lamps at 45 amp max (#282 and 283), 10-32 cp lamps alternating at 25 amp max per side (#286)
Flashes at a rate of 70 to 120 fpm, with first flash less than 1.3 seconds after startup
Features ISO relay with electronic control circuits
Five available versions include 16-lamp with 2- or 3- terminal, 20-lamp with 2- or 3- terminal and alternating 10-lamp with 3- terminal
Functions at 13v for 36 continuous hours with 16-32 cp lamps at 35 amp max (#182 and 183), 20-32 cp lamps at 45 amp max (#282 and 283), 10-32 cp lamps alternating at 25 amp max per side (#286)
Flashes at a rate of 70 to 120 fpm, with first flash less than 1.3 seconds after startup
SAE
FMVSS 108
FMVSS 108
Flasher Module
No
Signal-Stat
J590
J1054
J945
J1054
J945
Plastic
Black
3 Blade Terminals
Plastic
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| OTHER | 283 | 97208 |
