AIR COMPRESSOR

BENDIX

3558206X

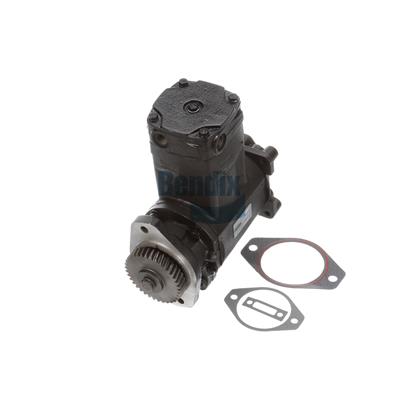

Name: 3558206X Air Compressor
Price: 373.99 USD
Availability: InStock

add to wishlist

Air Compressor

$373.99

& FREE Ground Shipping *

(+$350.00 Core Deposit)

Availability: Special Order Upon Request

Please Call (866) 439-2329; Email Customer Service or use Chat For details.

Technical Specifications

Part Number

3558206X

weight

40 lb 11 oz

Associated Comments

Bore Size

92.1 mm

Compressor Drive Type

Gear

Compressor Manufacturer

Holset

Coolant Inlet Port

3/4-16 Straight Thread O-ring Port

Cooling

Water-Cooled

Crankshaft Drive Type

Threaded

Displacement (CFM at 1250 RPM)

13.2 CFM

Drive Gear Included

Yes

Engine Manufacturer

Cummins

Engine Model

B Series, Encore

Governor Included

Gross weight

18 KG

Label Description

Holset

Lubrication

Side Port Oil Feed

Market Indicator

Aftermarket (Remanufactured)
Aftermarket Remanufactured

Mounting Flange Location

Flange, Front

Net Weight

18 KG

Number of cylinders

Number of mounting holes

Product Description - Long

Compressor

Thru-Drive Mounting Type

Flange - 2 Hole

Thru-Drive Shaft Connector

11-Tooth Spline

VMRS Description

Compressor - Air Brakes
