49364

49364

5 oz

Saturn Astra (08-09) - Cabin air

Instruction Sheet 49364
Cabin filter location # 3 - Behind glove box (glove box must be removed) 1 - Directly below the glove-box, remove the 3 screws in the frame. 2 - Open glove-box - then remove the 3 screws in the top section of the frame 3 - Locate the light plug connection and disconnect it (lower left-hand side) 4 - Remove the glove-box and set aside. 5 - Locate the cabin air housing, remove the cover held in place by two screws. 6 - Slide the cabin air out and replace 7 - Make sure to plug the light connection back in before reinstalling the glove-box.
Cabin Air Filters with Bioshield SDS
W1027W-FR Filtres d'habitacle gnriques W1027W avec BioShield MSDS
W1027W-SP Filtro de aire genrico para la cabina con BioShield MSDS

0.00 g

W

LD

1.220 in

Closed

11.889 in

WIX Cabin Air Filters remove pollen, dust, soot and other air borne contaminates from the air inside a vehicle for normal and severe driving conditions. WIX cabin air filters are enhanced with Microban antimicrobial technology which inhibits the growth of microbes on filter media and protects against damaging bacteria, mold, and mildew. Where applicable, combination odor removing media reduces odors from the exhaust systems of nearby vehicles. WIX cabin air filters are recommended for OEM filter change interval. WIX offers a full line of high efficiency cabin air filters for passenger cars and light trucks.

Particulate

0.00 Micron

WIX Filtro De Aire De Cabina

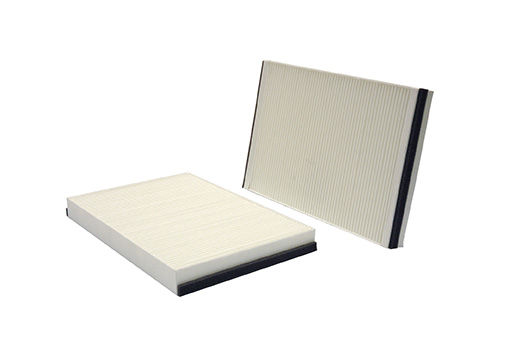

WIX Cabin Air Filter
WIX FLTR CABINE

WIX Cabin Air Panel

FLTR CABINE
Filtro De Aire De C
Cabin Air Filter

Cabin Air Panel

7.834 in
