Technical Specifications
GC2430L
90 DD
Combination - Long Stroke - Size 2430
64 MM
2.5 IN
2.5 IN
8.3 IN
211 MM
211 MM
239 MM
9.4 IN
9.4 IN
Heat treated power springs for maximum output force and extended life, powder coated for corrosion protection
Aluminum center body is durable, lightweight and corrosion resistant
Patented orange alert stoke indicator is visible when brakes are out of alignment
Epoxy coated clampband and service return spring for additional corrosion resistance
Double o-ring center seal and wears rings extend service life and protect against air leakage between chambers
Aluminum center body is durable, lightweight and corrosion resistant
Patented orange alert stoke indicator is visible when brakes are out of alignment
Epoxy coated clampband and service return spring for additional corrosion resistance
Double o-ring center seal and wears rings extend service life and protect against air leakage between chambers
9.3 IN
235 MM
235 MM
172 MM
6.8 IN
6.8 IN
Sizes to fit all drum brake applications.
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40F.
Self-piloting Dust Shield.
Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life.
Orange Alert Stroke Indicator
Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue.
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40F.
Self-piloting Dust Shield.
Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life.
Orange Alert Stroke Indicator
Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue.
Y

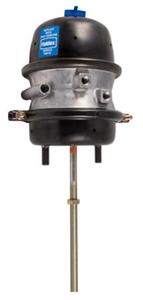

Gold Seal Spring Brake
BRAKE CHAMBER-GOLD SEAL-2430GC-LS
DDSB drum Gold LS
10 IN
1
2430021 and MA15425
(0) DD
9 gauge steel
4.75 IN
120.7 MM
120.7 MM
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| HALDEX FRICTION | GC2430L |
