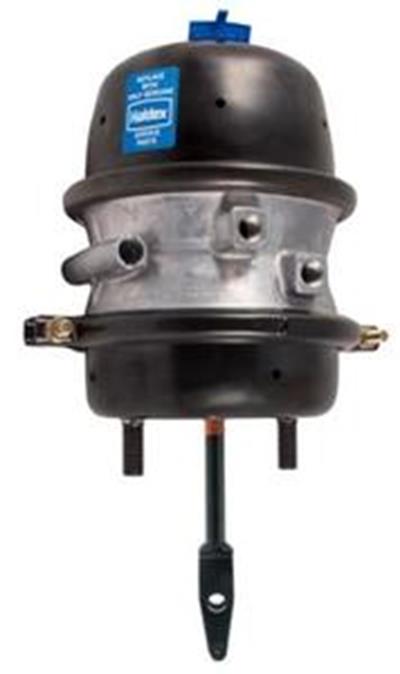

Brake Chamber
$96.09
Special Order Upon Request
Technical Specifications
GC3030S5CW
21 lb 14 oz
90 DD
3/8-18 NPTF
Combination with Welded Size 3030 (Spring Suspension)
2.5 IN
64 MM
64 MM
8.3 IN
211 MM
211 MM
10.2 IN
259 MM
259 MM
6.8 IN
5
9 IN
229 MM
229 MM
6.8 IN
173 MM
173 MM
Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life.
Orange Alert Stroke Indicator
Self-piloting Dust Shield.
Sizes to fit all drum brake applications.
Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue.
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40F.
Orange Alert Stroke Indicator
Self-piloting Dust Shield.
Sizes to fit all drum brake applications.
Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue.
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40F.
150 PSI
Y
Gold Seal Spring Brake
BRAKE CHAMBER-GOLD SEAL-3030GC
DDSB drum Gold SS
5.5 IN
5/8-18 UNF
1
(0) DD
9 gauge steel
1.5 IN
38.1 MM
38.1 MM
4.75 IN
120.7 MM
120.7 MM
5/8-11 UNC
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| HALDEX FRICTION | GC3030S5CW |
