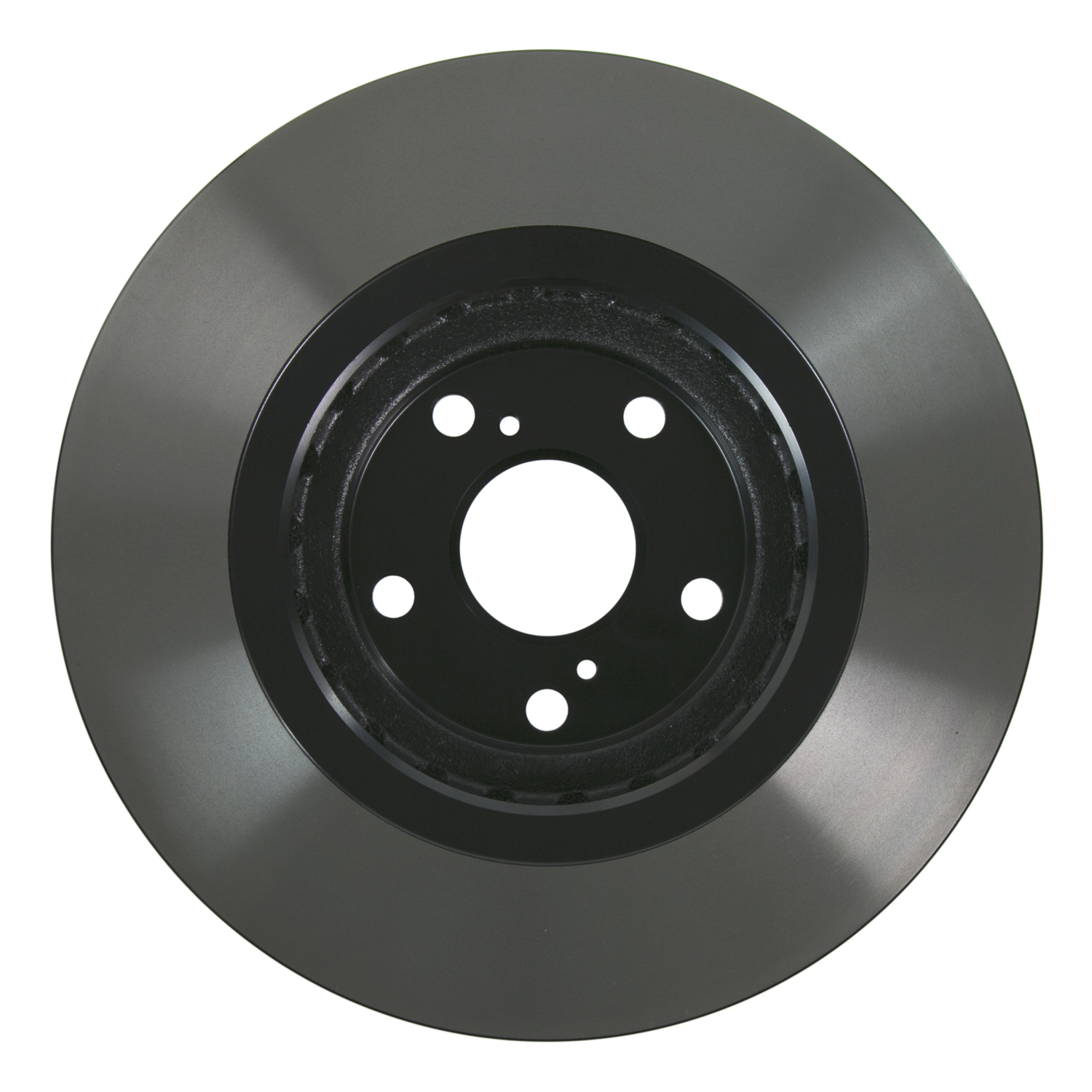

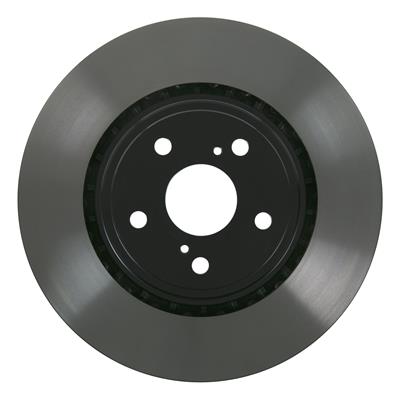

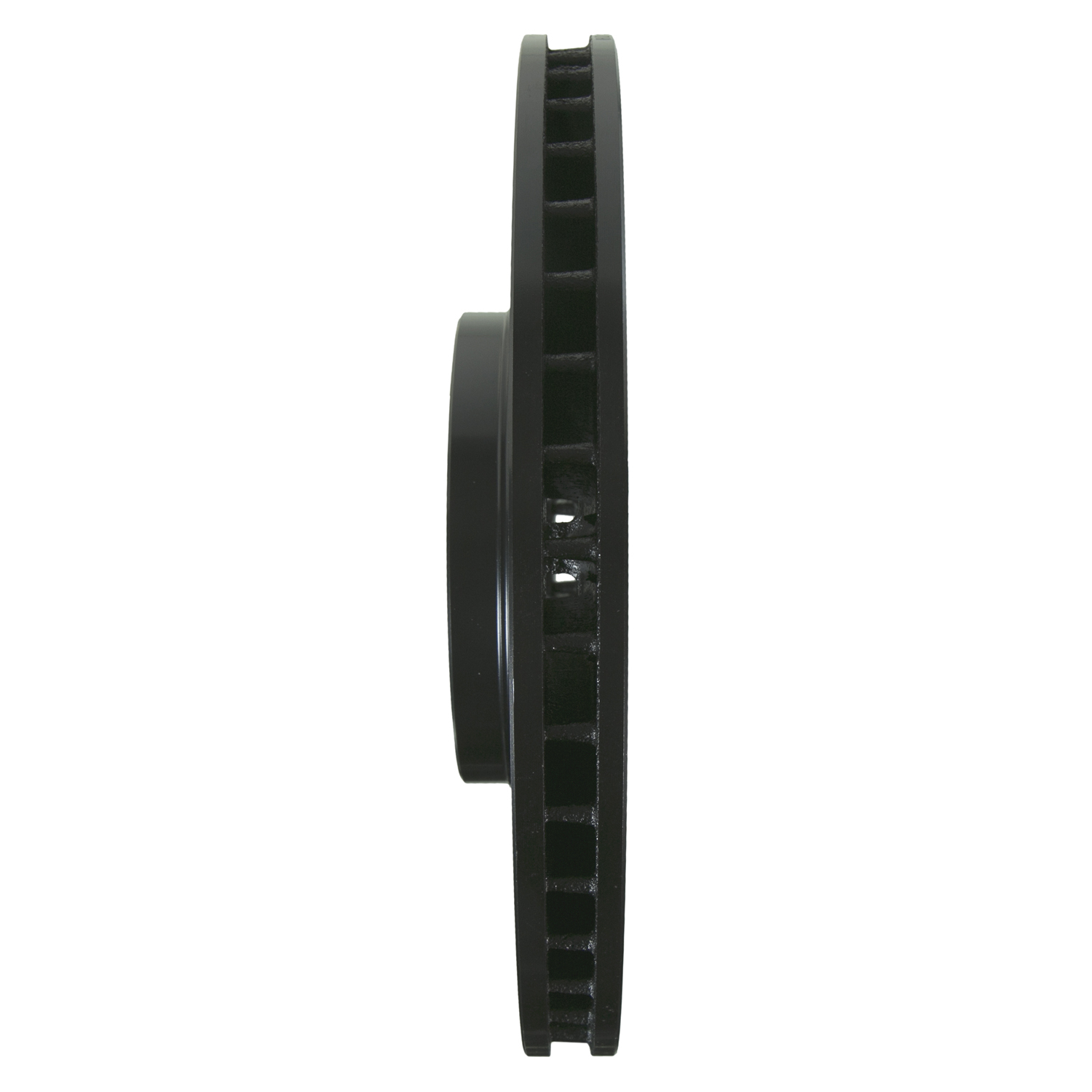

ROTOR,BRAKE- FRONT, VENTED, 12.91"(328MM) DIA, 1.94"(49.4MM) HEIGHT, 1.1"(28MM) NOMINAL THICKNESS, 2.44"(62MM) HUB HOLE DIA, 5 LUG HOLE
$51.50
Special Order Upon Request
Interchangeable With BD126565E (2)
Technical Specifications
BD126565E
Lexus NX200t (F) 15; NX300h (F) 15; RX350 (F) 15-10; RX450h (F) 15-10; Nissan 350Z (F) 09-08; Toyota Highlander (F) 14-08; Sienna (F) 13-11
4.500 IN
114.3 MM
114.3 MM
Full Cast
Directional
Vapor Corrosion Inhibitor (VCI) bag reduces rotor prep & saves installation time
Smooth surface finish provides less pad break-in time
Superior metallurgy and tighter tolerances for optimal performance
Precision cut finish of outer diameter prevents improper balance issues
Field tested reliability
Install Wagner with total confidence
49.4 MM
1.945 IN
1.945 IN
Wagner Brake premium rotors are engineered, tested and certified to perform safely and effectively on today's vehicles.
Cast Iron
1.102 IN
28.0 MM
28.0 MM
12.913 IN
328.0 MM
328.0 MM
Wagner Brake Rotor
Brake Rotor
Brake Rotor
Disc Brake Rotor
Yes
No
Vented
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| CENTRIC PARTS | 120.44158 | |
| FED. MOGUL / WAGNER BRAKE | BD126565 | |
| NAPA | 880636 | |
| OTHER | 120.44158 | |
| RAYBESTOS / BRAKE PARTS | 980636 | |
| TOYOTA | 435120E030, 4351248110 |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| LEXUS | NX200T | 2015-2017 |
| LEXUS | NX300 | 2018-2019 |
| LEXUS | NX300H | 2015-2019 |
| LEXUS | RX350 | 2010-2015 |
| LEXUS | RX450H | 2010-2015 |
| NISSAN | 350Z | 2008-2009 |
| TOYOTA | HIGHLANDER | 2008-2019 |
| TOYOTA | SIENNA | 2011-2019 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
