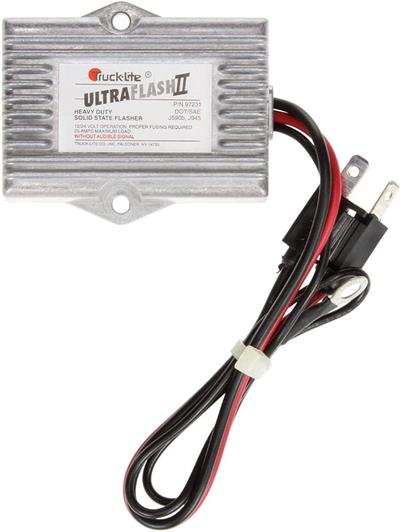

FLASHER, ULTRA FLASH II / HEAVY-DUTY / SOLID-STATE / ALUMINUM FLASHER MODULE / 90FP / 12-24V / HARDWIRED / BI-POLAR PLUG/RING TERMINAL
$101.82
13 in stock
Technical Specifications
97231
0735111035657
034-003-018
Protects against short circuit overloads with a self-resetting feature
97201 rated for loads below 17 amps per channel or 8-32/3 cp bulbs
For interior/cab use only
97231, 97232 and 97333 feature folding bi-polar plug with 11" leads for reverse polarity operation
97201 features three 1/4" tabs and one 1/4" ring with heat shrink tubing and 12" leads
ULTRA FLASH II
Optional remote wiring requires 12" jumper wire, 94954
Works with LED or incandescent lamps on 12v or 24v electrical systems
Solid-state electronics are sealed in polyurethane for moisture and corrosion protection
97231, 97232 and 97233 rated for loads below 25 amps or 12,-32 cp bulbs
Surface mounts with two 1/2"-6 pan head screws at 2.12" centers or with two 4" cable ties (both included)
Do not expose to moisture or liquid
97201 used for wig/wag system
97201 rated for loads below 17 amps per channel or 8-32/3 cp bulbs
For interior/cab use only
97231, 97232 and 97333 feature folding bi-polar plug with 11" leads for reverse polarity operation
97201 features three 1/4" tabs and one 1/4" ring with heat shrink tubing and 12" leads
ULTRA FLASH II
Optional remote wiring requires 12" jumper wire, 94954
Works with LED or incandescent lamps on 12v or 24v electrical systems
Solid-state electronics are sealed in polyurethane for moisture and corrosion protection
97231, 97232 and 97233 rated for loads below 25 amps or 12,-32 cp bulbs
Surface mounts with two 1/2"-6 pan head screws at 2.12" centers or with two 4" cable ties (both included)
Do not expose to moisture or liquid
97201 used for wig/wag system
SAE
FMVSS 108
FMVSS 108
Flasher Module
No
J1054
J590
J590
Aluminum
2 Screw
Silver
Hardwired
18
14
14
Aluminum
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| GRUMMAN | LLV | 1987-1994 |
| PTRUCK | 1-TON | 1997 |
| PTRUCK | 2-TON | 1997 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
