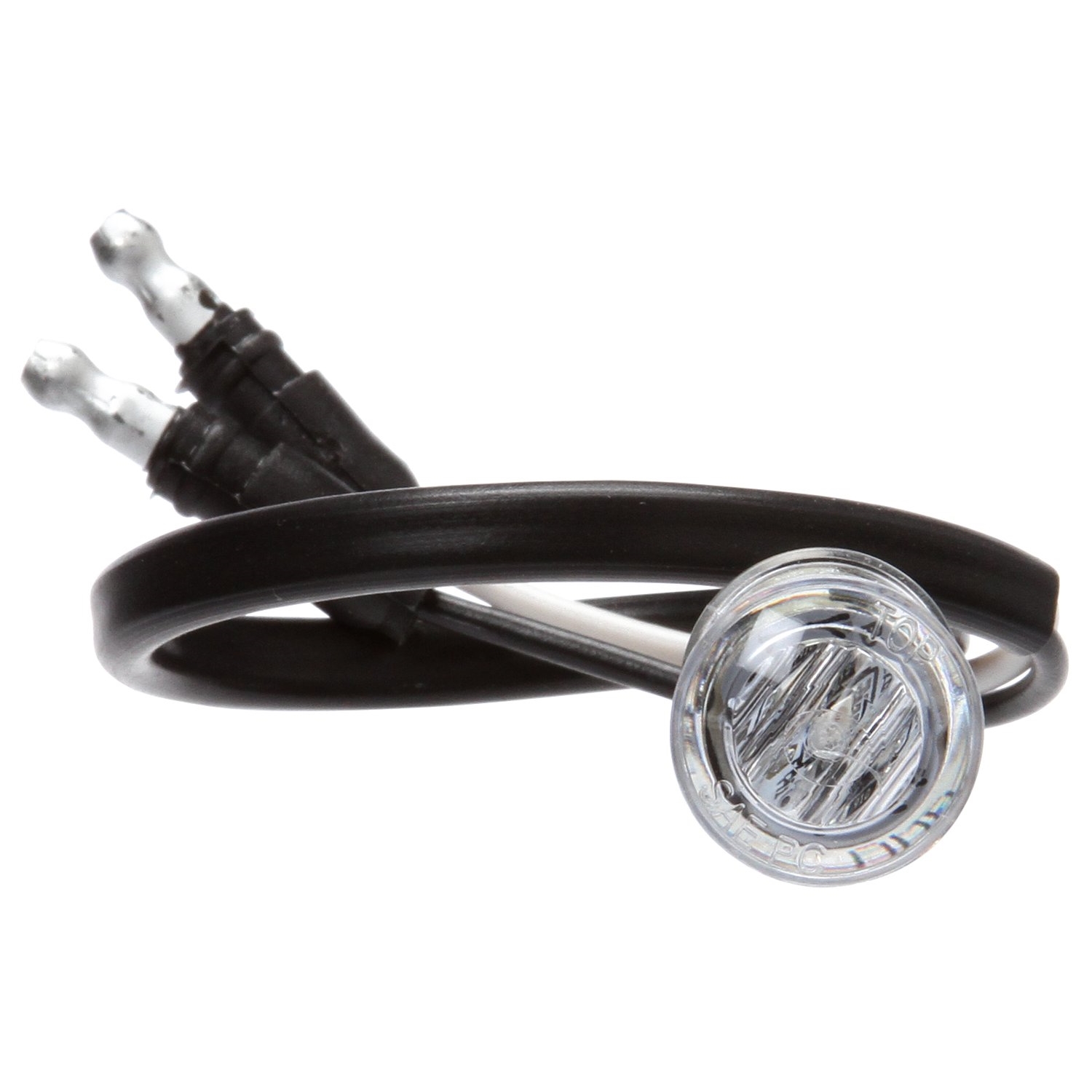

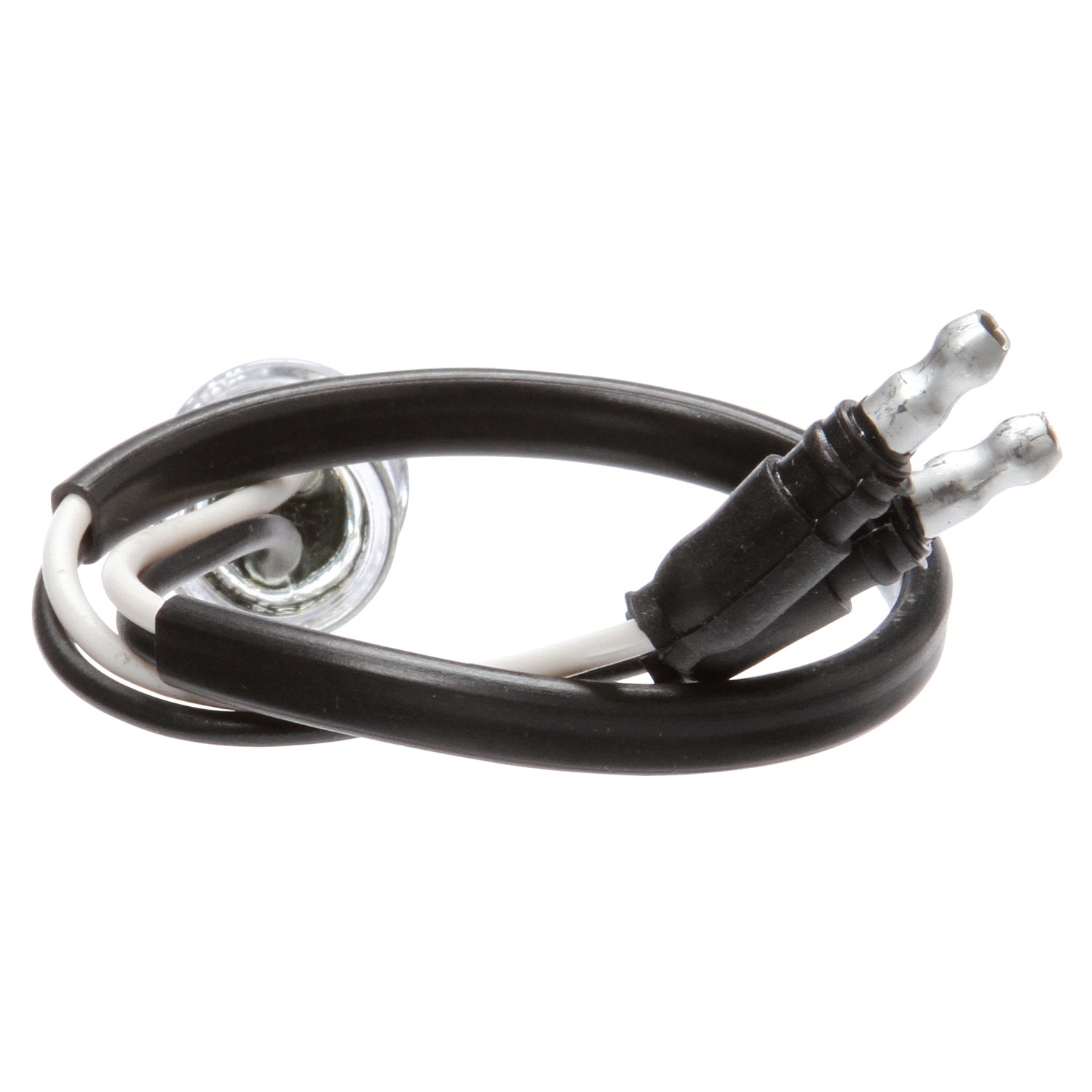

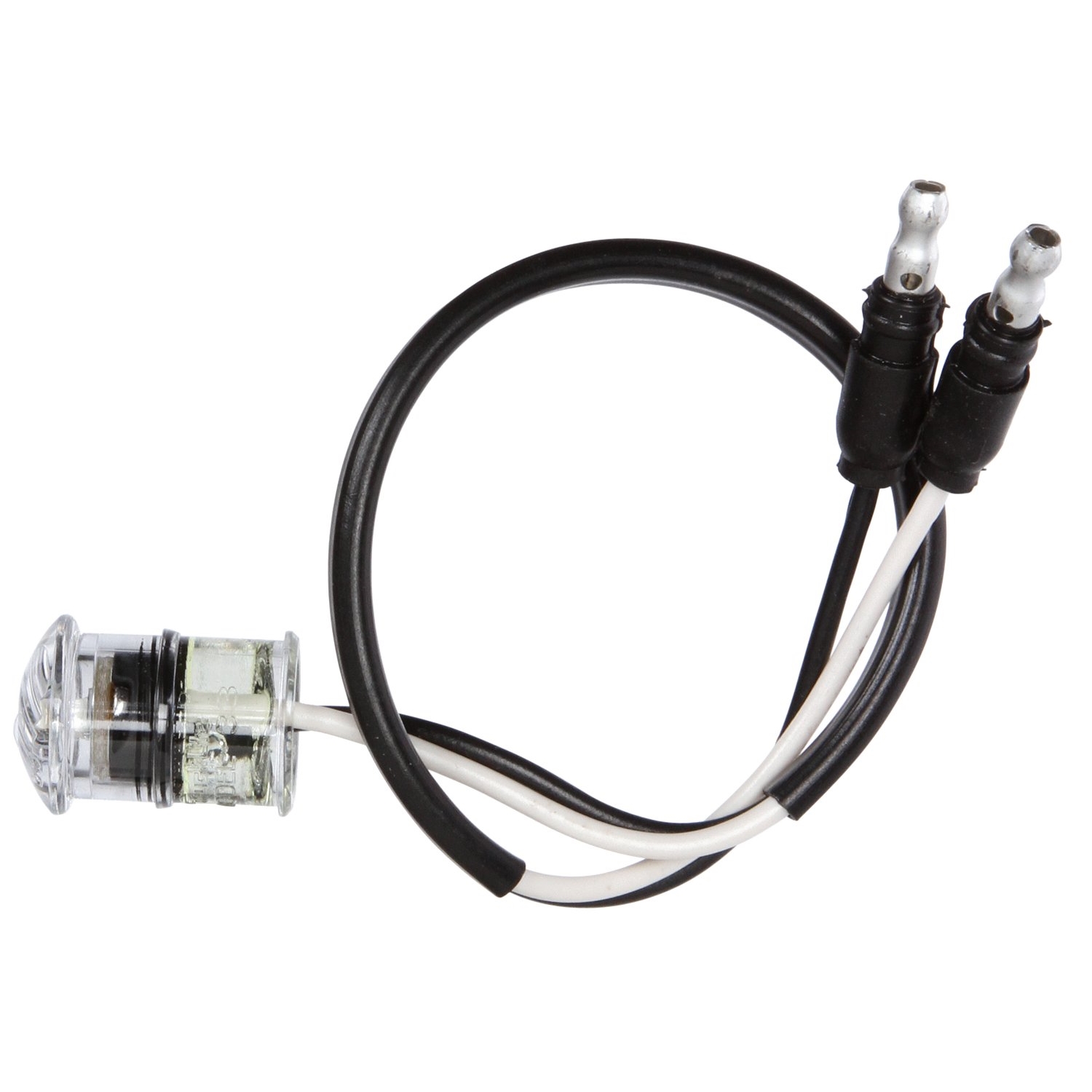

33 SERIES, LED, CLEAR/YELLOW ROUND, 1 DIODE, MARKER CLEARANCE LIGHT, PC, HARDWIRED, .180 BULLET TERMINAL, 12V
$19.78
Special Order Upon Request
Technical Specifications
33285Y
1 oz
0735111184935
034-004-021
Requires 3/4" mounting hole
Reduces lighting costs due to physical damage and heat entrapment

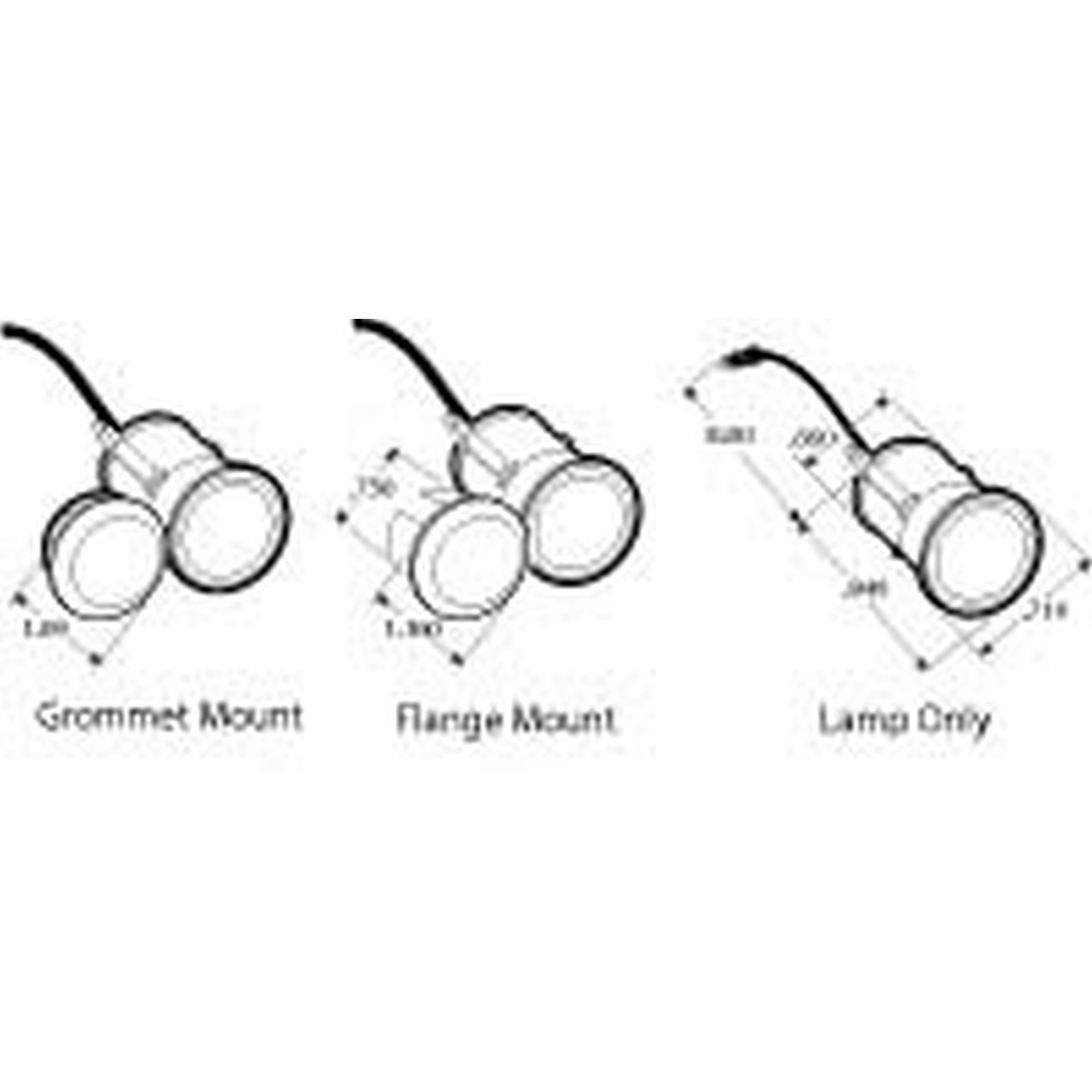

Material thickness for grommet is .125'' - .250''
Material thickness for flange is .040'' - .250''
Offers trailer engineers and manufacturers new trailer and rear door structure design flexibility
World's smallest LED marker lamp for the transportation industry
Electronics completely sealed in epoxy to resist corrosion and moisture
US patent 7,658,524
Hard-wired lamp design is easily retrofitted
Exceeds legal requirements
LEDs draw less current, allowing more power for other vehicle requirements
Reduces lighting costs due to physical damage and heat entrapment
Material thickness for grommet is .125'' - .250''
Material thickness for flange is .040'' - .250''
Offers trailer engineers and manufacturers new trailer and rear door structure design flexibility
World's smallest LED marker lamp for the transportation industry
Electronics completely sealed in epoxy to resist corrosion and moisture
US patent 7,658,524
Hard-wired lamp design is easily retrofitted
Exceeds legal requirements
LEDs draw less current, allowing more power for other vehicle requirements
SAE
FMVSS 108
DOT
CMVSS108
FMVSS 108
DOT
CMVSS108
Marker Clearance Light
No
33 Series
PC
P2
P2
Round
Polycarbonate
Sealed
1
LED
.75"
Grommet Mount
Hardwired
18
Polycarbonate
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| FREIGHTLINER/DAIMLER TRK | TL33285Y | |
| OTHER | TL33285Y | |
| STOUGHTON | TL33285Y |
