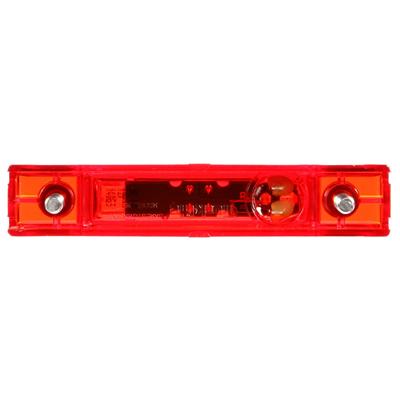

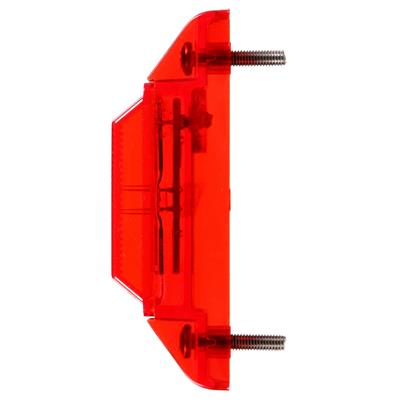

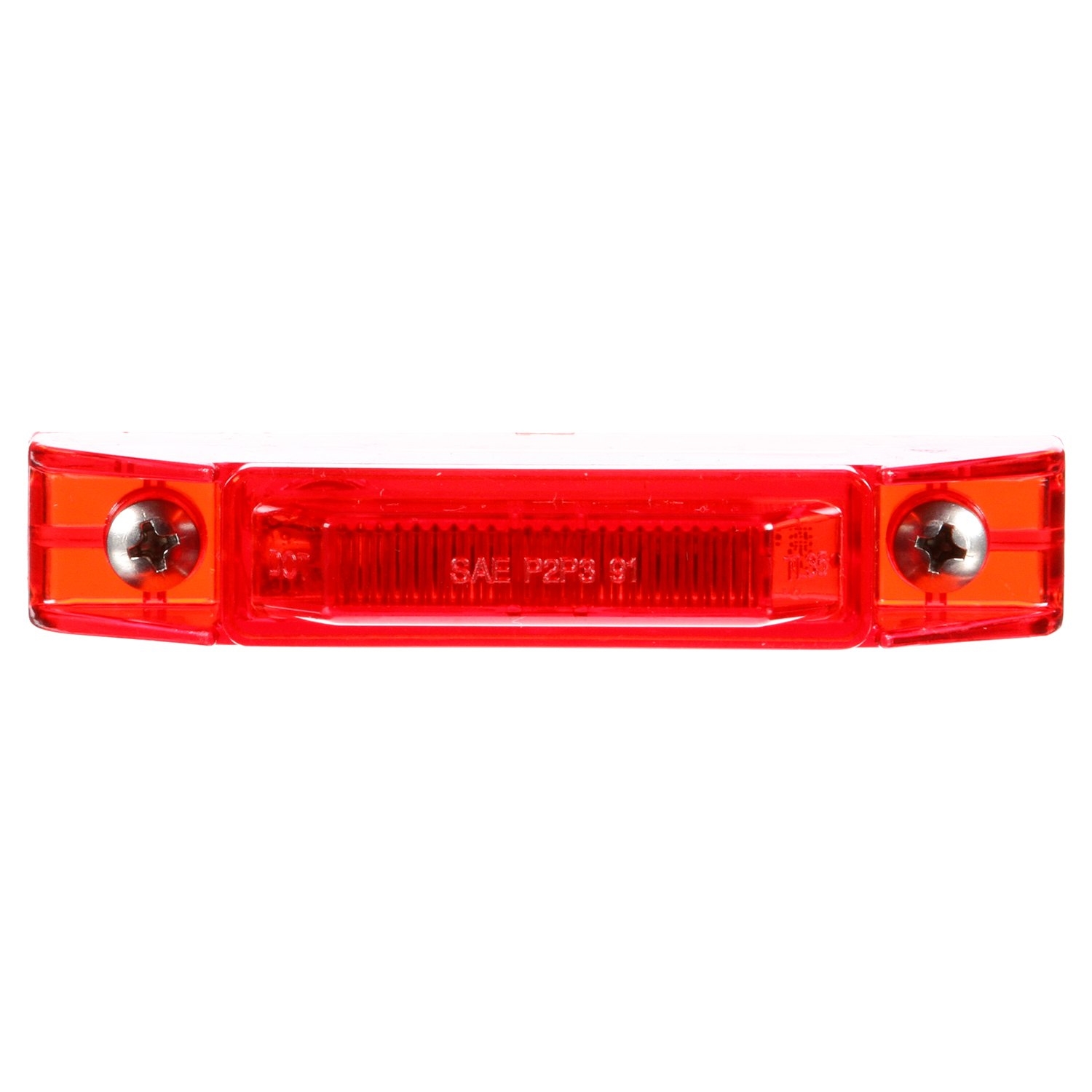

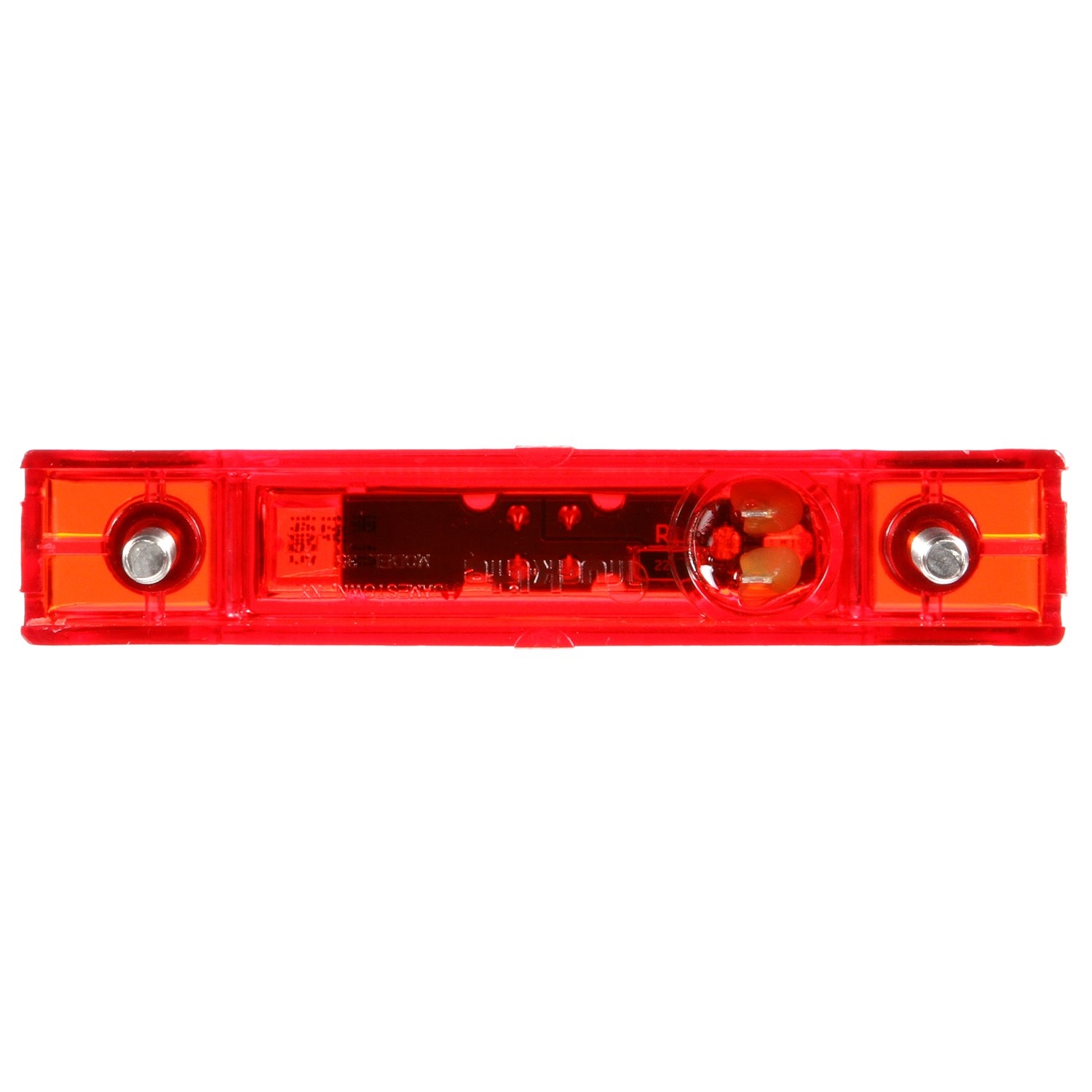

LED RED LAMP

TRUCK-LITE CO

35001R

Name: 35001R Led Red Lamp
Price: 12.33 USD
Availability: InStock

add to wishlist

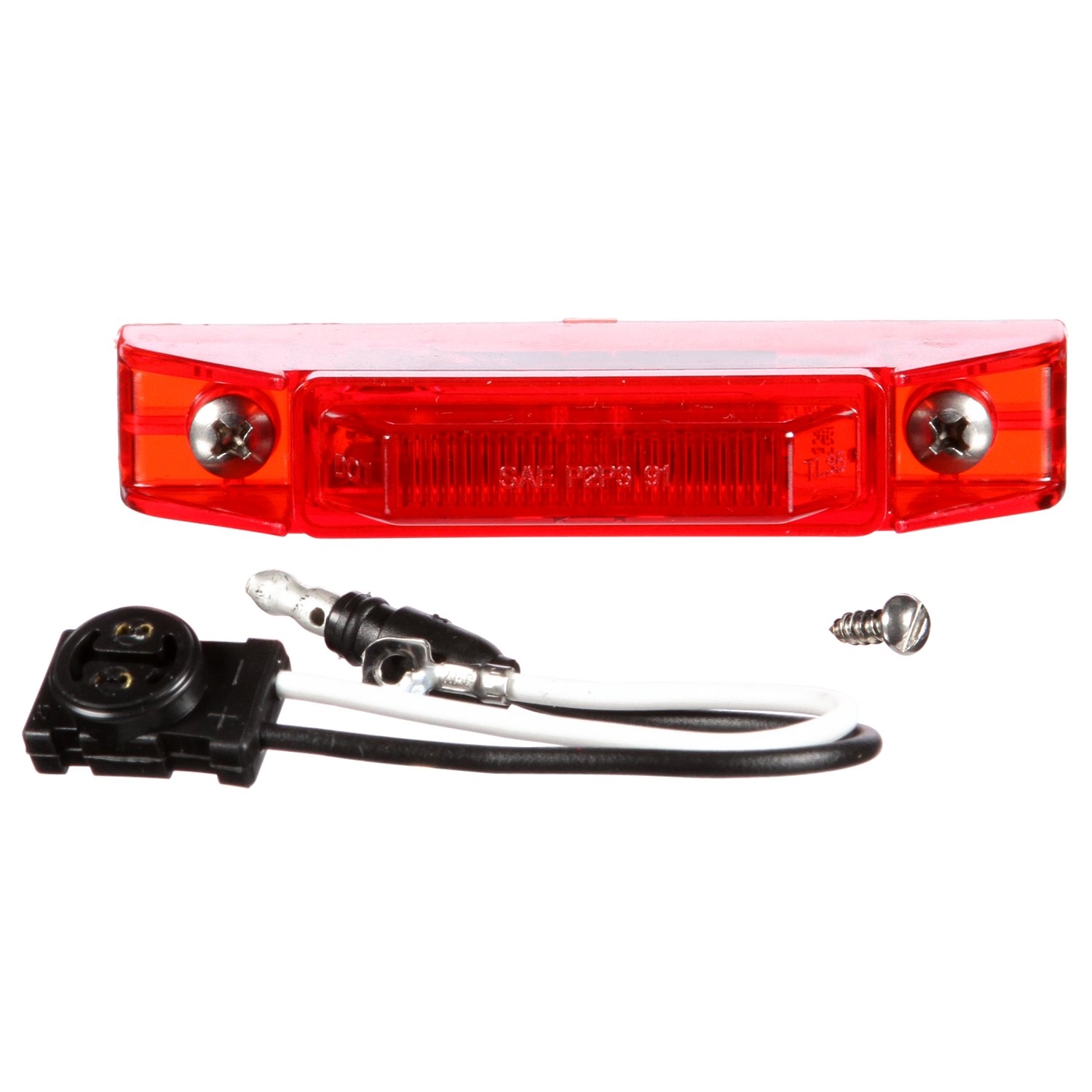

35 SERIES, LED, RED RECTANGULAR, 1 DIODE, MARKER CLEARANCE LIGHT, P2, 2 SCREW, FIT 'N FORGET M/C, .180 BULLET TERMINAL/RING TERMINAL, 12V, KIT

$12.33

Availability: 1 in stock

Need more of this this Item? Please Call (866) 439-2329 for help.
We have the following quantities available in other warehouses.
Item Number	Warehouse	Quantity
35001R	Texas (TX1)	1

Technical Specifications

Part Number

35001R

weight

2 oz

UPC

0735111040835

VMRS

034-004-253

Features & Benefits

Not suitable for PC requirements
Optional gasket to improve seal between lamp and body
Must be mounted horizontally
Slim 3/4'' wide design makes lamp perfect solution for narrow rail designs

Compliance Family

FMVSS 108
DOT
SAE
CMVSS108

Product Type

Marker Clearance Light

KIT (Y/N)

Yes

Series

35 Series

Standards Met

P2
PC

Lens Shape

Rectangular

Lens Material

Polycarbonate

Sealed/Bulb Replaceable

Sealed

Number of Diodes/Bulbs

Lighting Technology

LED

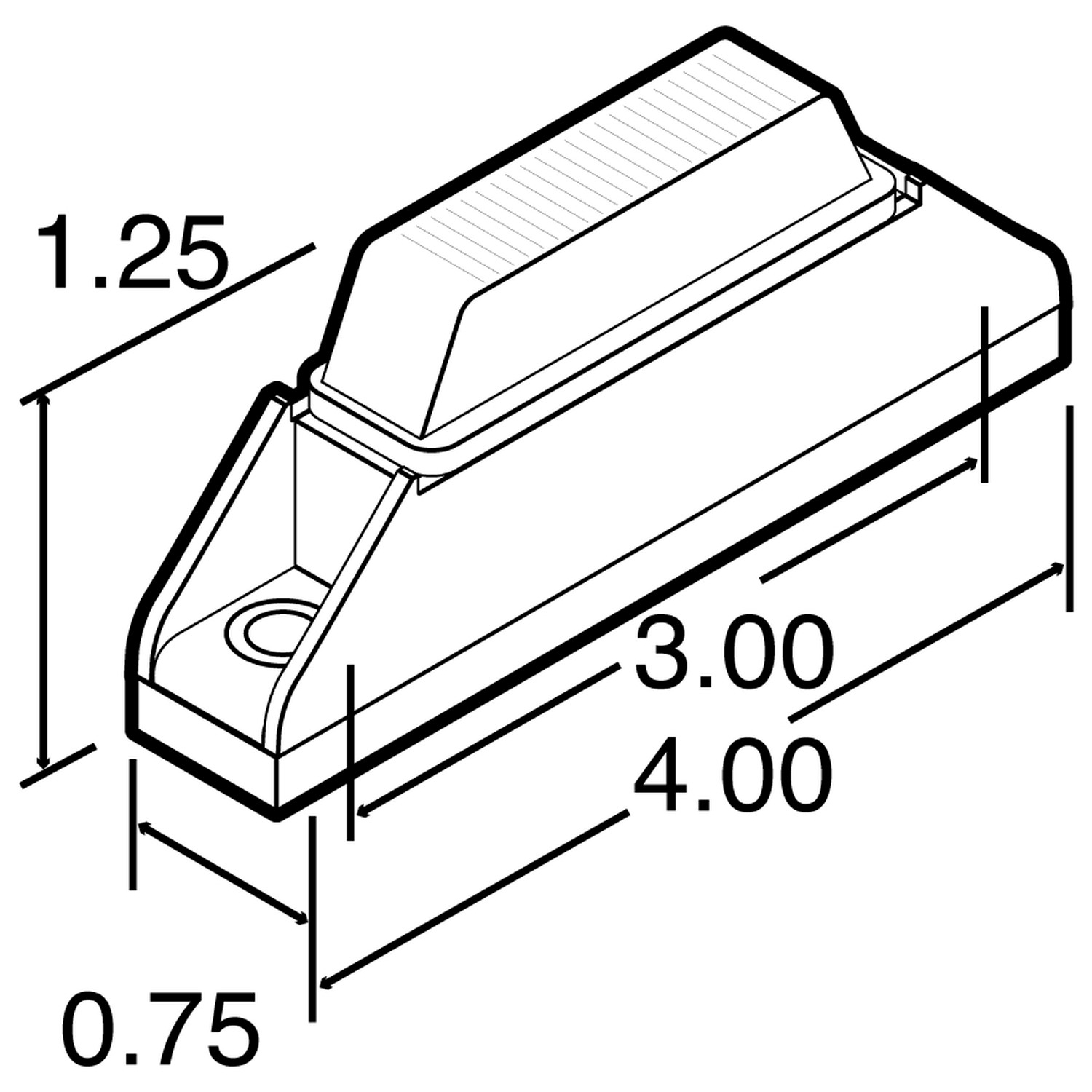

Common Size

1"x4"

Mount Type

2 Screw

Mount/Trim Color

Red

Lamp Connection

Fit 'N Forget M/C

Wire Gauge

Housing Material

Polycarbonate

Parts Interchange

Manufacturer	Part Numbers	Superseded Parts
BUS PARTS WAREHOUSE	TRU35001R
FREIGHTLINER/DAIMLER TRK	TL35001R
GREAT DANE TRL/ AURORA	TL35001R
I H C TRUCK	TL35001R	453948001
KENWORTH	35001R
OTHER	B00PCOA0HW, TL35001R, 35001R, 35001R3	35001R1
RYDER FLEET PRODUCTS	U13 35001R3, U1335001R3
TRUCK-LITE CO	35001R3
VOLVO-WHITE VENDOR DIRECT	TL35001R
VOLVO/WHITE	TL35001R
WORKHORSE PARTS	35001R

Vehicle Fitment

Make	Model	Years
GREAT DANE	TRAILER	*, 1998-2006, 2008-2009, 2011-2017
HYUNDAI	TRAILER	2005-2006

This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
