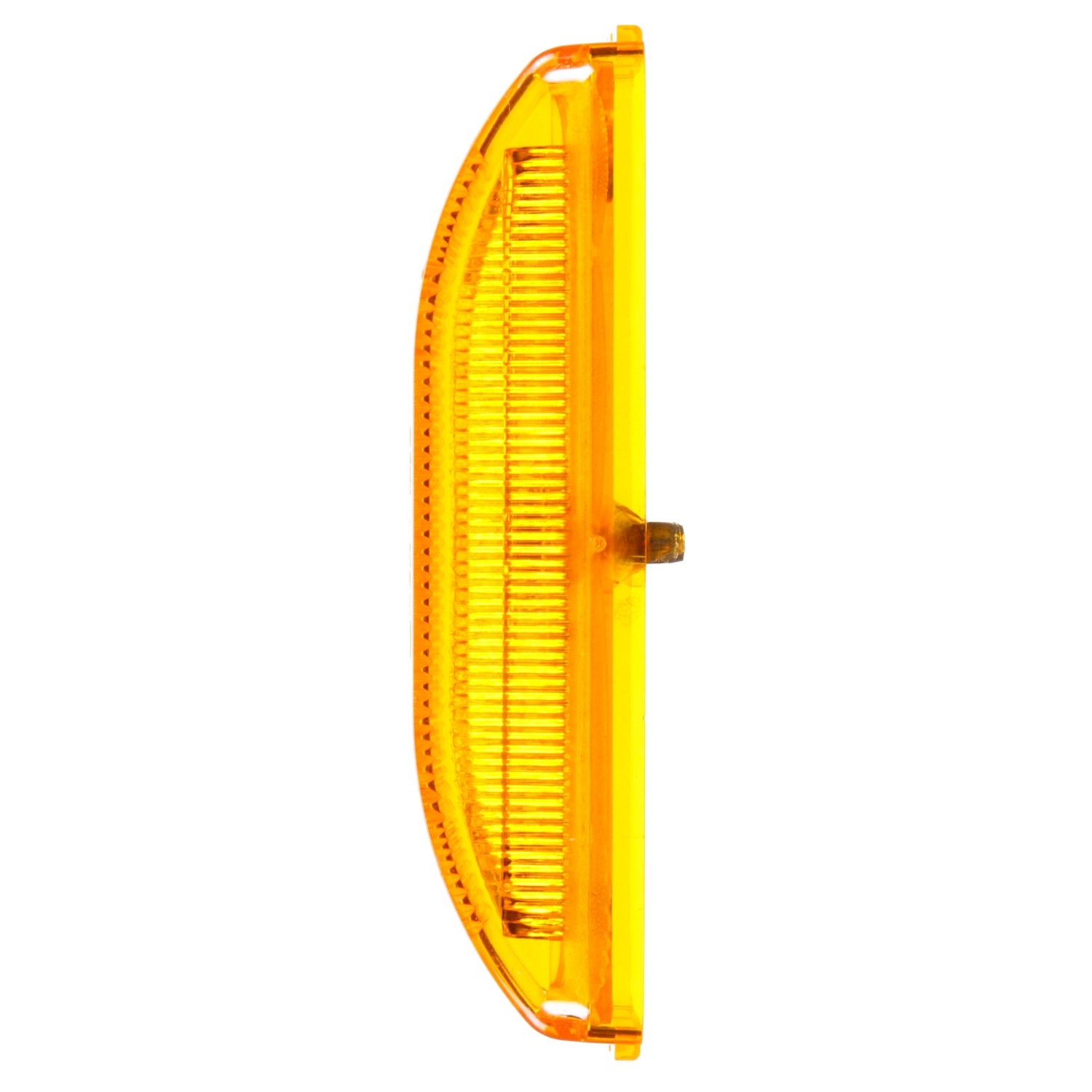

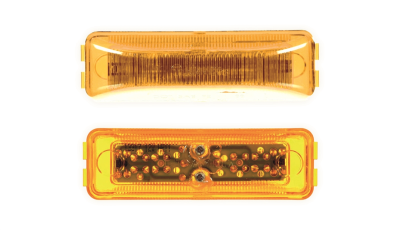

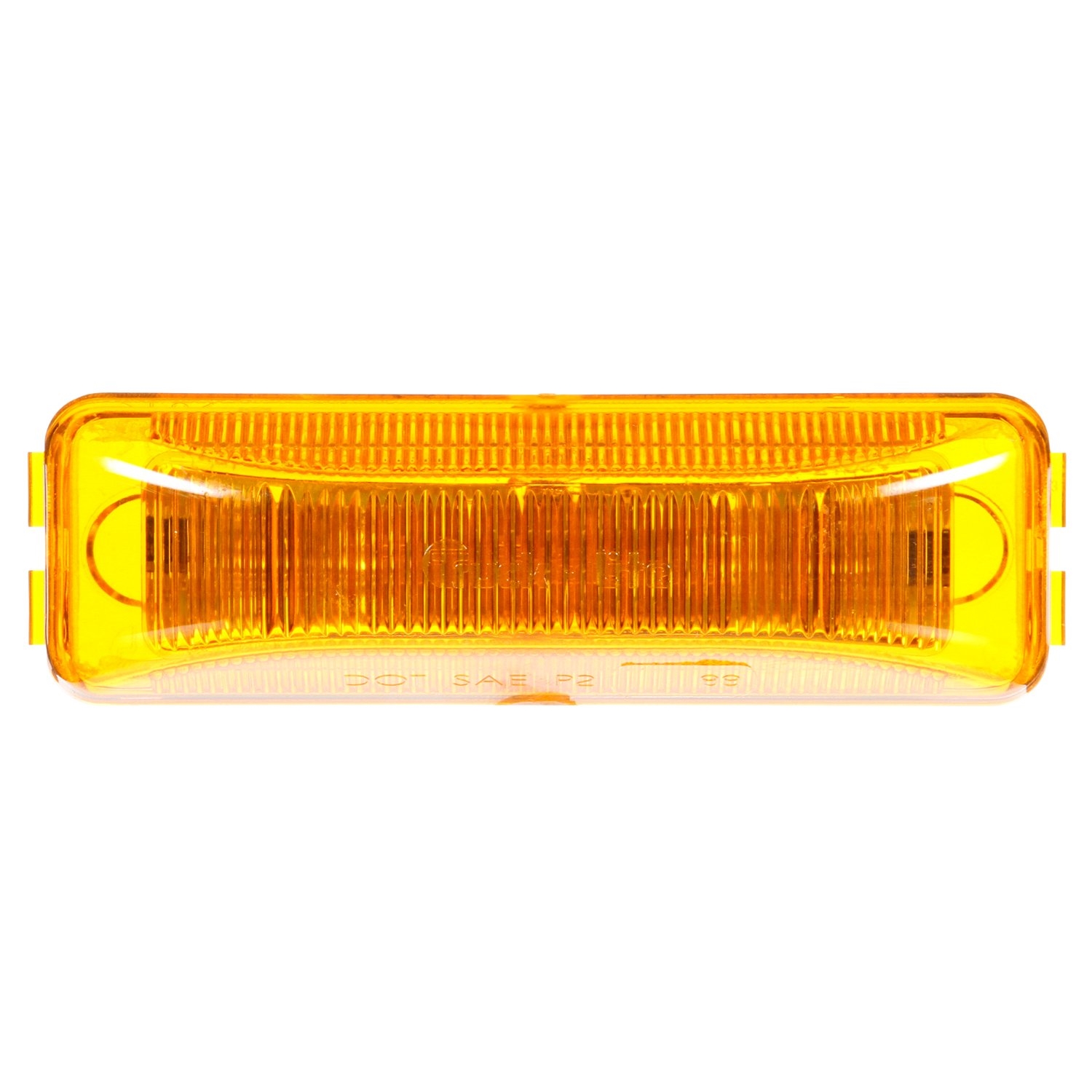

19 SERIES, BASE MOUNT, LED, YELLOW RECTANGULAR, 6 DIODE, MARKER CLEARANCE LIGHT, P2, FIT 'N FORGET M/C, 12V
$10.03
Available to Order
Interchangeable With 19250Y (1)
Technical Specifications
19250Y
1 oz
0735111062905
034-004-021
Must be mounted horizontally
Designed to fit applications requiring minimal space
Draws less current, allowing more power for other vehicle requirements
PC rated lamps meets requirements when mounted on a 45 degree angle
Standard red lamps have 2 diode pattern

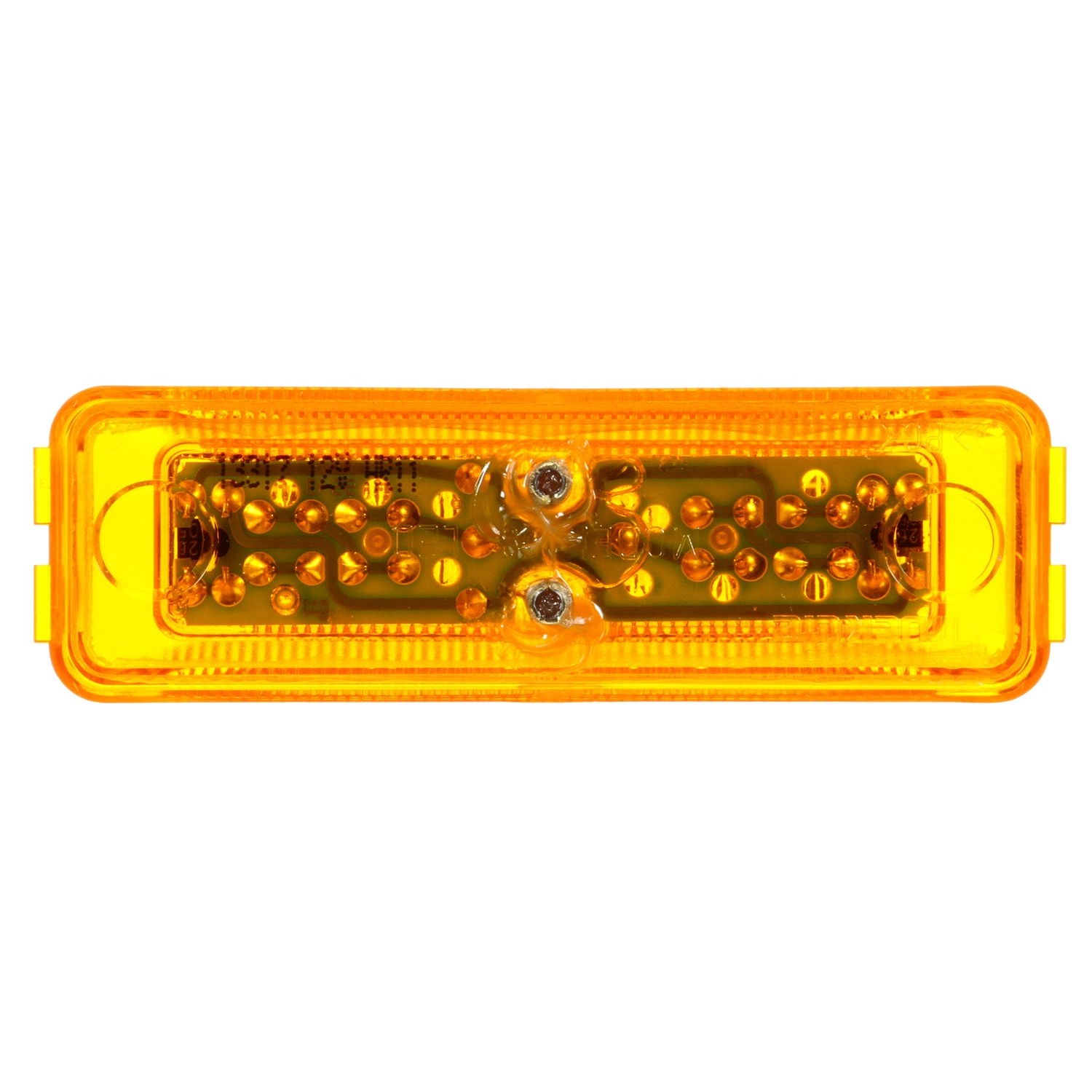

PC rated yellow lamps have 6 diode pattern
Innovative optic design allows combination lamp to function as two
PC rated red lamps and standard yellow lamps have 4 diode pattern
Designed to fit applications requiring minimal space
Draws less current, allowing more power for other vehicle requirements
PC rated lamps meets requirements when mounted on a 45 degree angle
Standard red lamps have 2 diode pattern
PC rated yellow lamps have 6 diode pattern
Innovative optic design allows combination lamp to function as two
PC rated red lamps and standard yellow lamps have 4 diode pattern
SAE
FMVSS 108
DOT
CMVSS108
FMVSS 108
DOT
CMVSS108
Marker Clearance Light
No
19 Series
P2
PC
PC
Rectangular
Polycarbonate
Sealed
6
LED

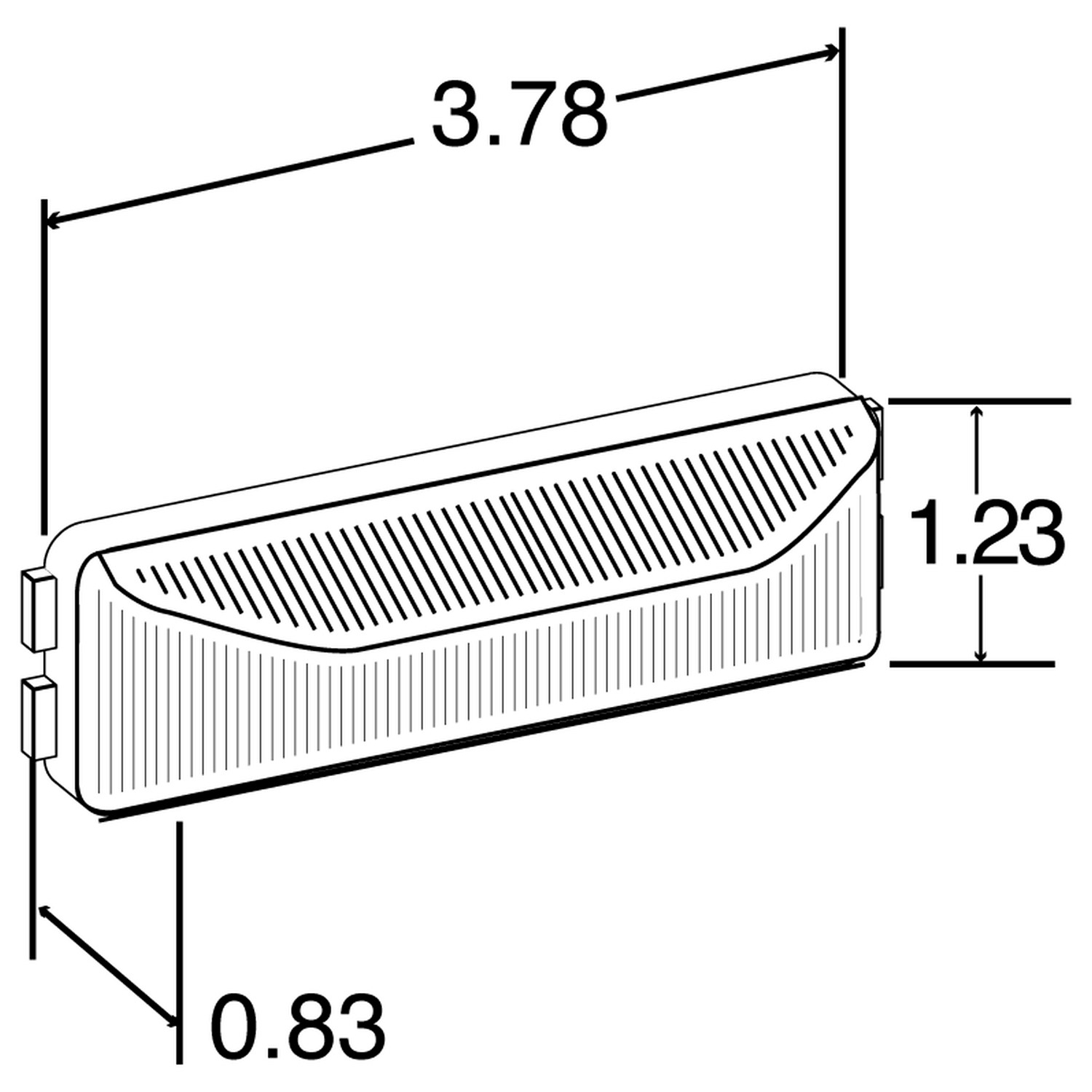

1"x4"
Bracket Mount
Fit 'N Forget M/C
Polycarbonate
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| FREIGHTLINER/DAIMLER TRK | TL19250Y | |
| GREAT DANE TRL/ AURORA | TKL19250Y, TL19250Y, TRU19250Y | |
| GROTE LIGHTING | G1903 | |
| I H C TRUCK | TL19250Y | EE34002227, TLD19250Y, 4002227 |
| KENWORTH | 19250Y | |
| MACK | 841319250Y | |
| OTHER | B000NDD9AW, B013FX8ZCI, TL19250Y, 19250Y3, 841319250Y | EE34002227, TLD19250Y |
| RYDER FLEET PRODUCTS | U13 19250Y, U1319250Y | |
| STOUGHTON | TL19250Y | |
| TRUCK-LITE CO | 19250Y3 | |
| VOLVO-WHITE VENDOR DIRECT | TL19250Y | |
| VOLVO/WHITE | TL19250Y | |
| WORKHORSE PARTS | 19250Y |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| GREAT DANE | TRAILER | *, 1998-2006, 2008-2009, 2011-2017 |
| MISCELLANEOUS | APPLICATION | * |
| MISCELLANEOUS | SPECIALTY LIGHTING | * |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
