VALVE,RG2 RELAY - CONTROL PORT 1/4" / TWO MOUNTING HOLES, .34 DIAMETER ON 1.50" CENTERS / TWO PORT DELIVERY / CRACKING PRESSURE: 5.6 +/- 1.0 PSI
$78.85
Special Order Upon Request
Interchangeable With KN28510 (2)
Technical Specifications
KN28510
1 lb 4 oz
.25 IN
90 DD
5.6 1.0 PSI
.375 IN
.375 IN
Cover may be rotated without affecting warranty or performance
.625 IN
3.5 IN
Repair Kit use part number RN10HM.

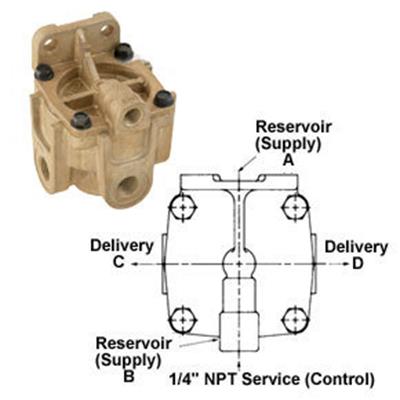

RG2 Relay Valve, A fast relay used to apply and release service brakes on tractor or trailer. Compact size. Cover may be rotated without affecting warranty or performance. Picture illustrates 90 control port position. 0 would locate port in line with delivery port "D".
RG2 Relay Valve, A fast relay used to apply and release service brakes on tractor or trailer. Compact size. Cover may be rotated without affecting warranty or performance. Picture illustrates 90 control port position. 0 would locate port in line with delivery port "D".
2 @ .34" diameter on 1.50" centers
N30108AK
1 @ .5, 1 @ .375 IN
Air Brake Relay Valve
VLV-RELAY,RG2
VLV-RELAY RG2
0.5 IN
1/2" IN
1.5 LB
3.5
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| BENDIX COMMERC. VEH.SYST. | KN28510X | |
| BEPCO | KN28510 | |
| EUCLID IND INC | EMDKN28510N, EMDKN28510X | |
| FLEETPRIDE | KN28510 | |
| FREIGHTLINER/DAIMLER TRK | BW KN28510X, HDX KN28510, HDX KN28510X, TDA R955KN28510N, WAB WKN28510 | TDA RKN28510 |
| GREAT DANE TRL/ AURORA | HALKN28510, MERR955KN28510N | |
| HALDEX /BERG AIR BRAKE | KN28510RX, KN28510X, N30108BL | |
| I H C TRUCK | WABWKN28510, ZZKN28510X | RKN28510, R955KN28510 |
| KENWORTH | RKN28510 | |
| MACK | 3081425, 745KN28510X, 8235RKN28510 | 20QE4208M, 5396KN28510 |
| MERITOR AUTOMOT./ROCKWELL | EMDKN28510N, EMDKN28510X, RKN28510, R955KN28510N, R955KN28510X | |
| OTHER | BXKN28510X, HDX KN28510, HDX KN28510X, KN28510, KN28510RX, KN28510WB, KN28510X, RKN28510, R955KN28510N, R955KN28510X, TDA RKN28510, TDA R955KN28510N, WABWKN28510, WAKN28510, ZZKN28510RX, ZZKN28510X, 5396KN28510RX, 5396KN28510X, 745KN28510X, 8235RKN28510, 8235R955KN28510N, 8235R955KN28510X | AE78889, A78889, A78889X, MIDKN28510, 28510, RKN28510, R955KN28510 |
| PRIMA BRAKE COMPONENTS | AV28510 | |
| ROCKWELL | RKN28510, R955KN28510N, R955KN28510X | |
| S&S TRUCK PARTS INC | S6086 | |
| TRUCKRAFT DIV.CRANE CARRI | BDX KN28510X | |
| VELVAC INC | 34057 | |
| VOLVO-WHITE VENDOR DIRECT | BW KN28510X, MIDKN28510, MIDKN28510RX, MIDKN28510X, TDARKN28510, TDAR955KN28510N, TDAR955KN28510X | |
| VOLVO/WHITE | TDARKN28510, 3081425 | 72201-0001, 72201-0013, 722010001, 722010013, 74101-0001, 74101-0009, 741010009 |
| WORKHORSE PARTS | KN28510 |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| GREAT DANE | TRAILER | *, 1998-2006, 2008-2009, 2011-2017 |
| MACK | CH612 | 1999 |
| MACK | CH613 | 1999 |
| MACK | MR688P | 1999 |
| MACK | MR688S | 1999 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
