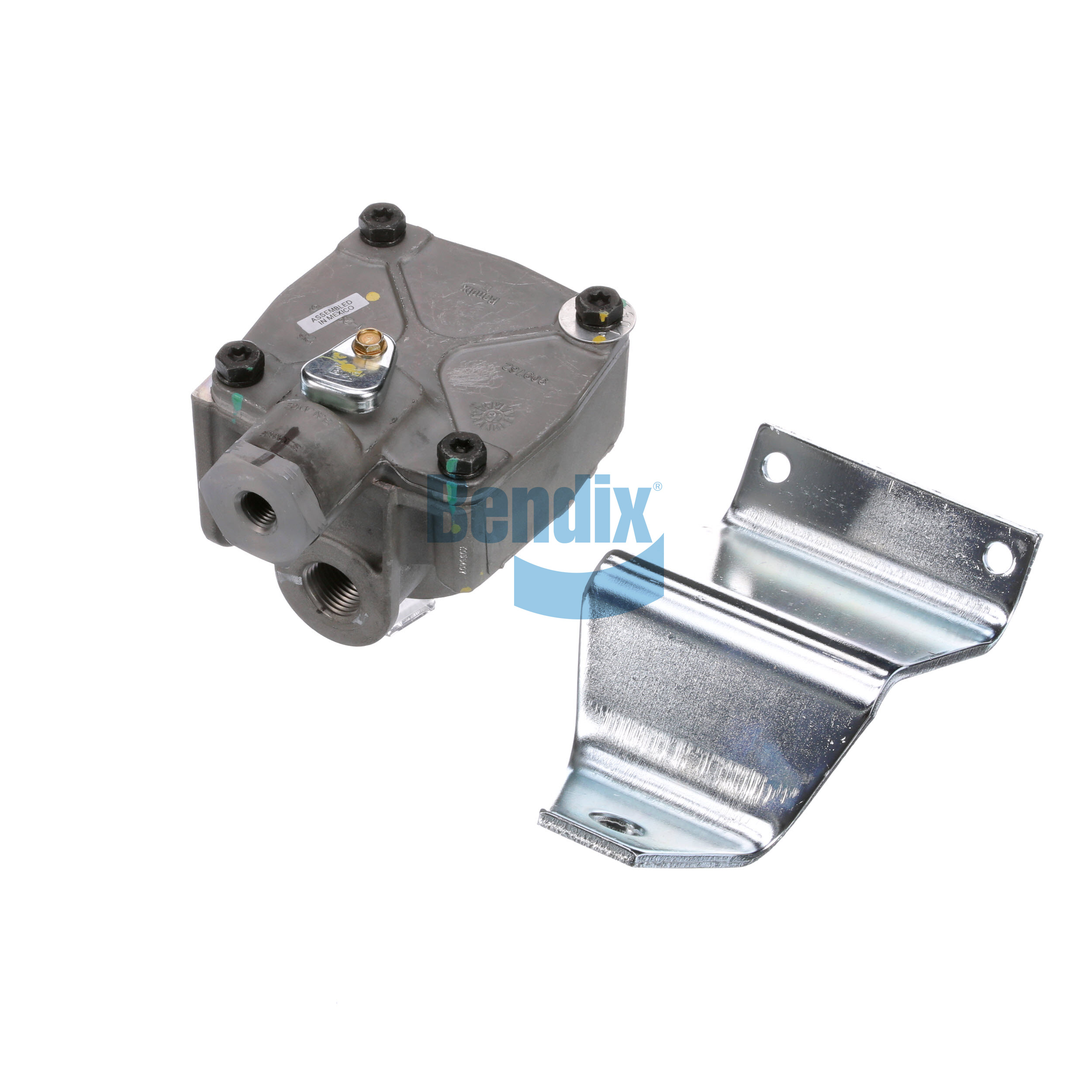

RELAY VALVE

BENDIX

106325N

Name: 106325N Relay Valve
Price: 163.39 USD
Availability: InStock

add to wishlist

Relay Valve

$163.39

Availability: Special Order Upon Request

Please Call (866) 439-2329; Email Customer Service or use Chat For details.

Technical Specifications

Part Number

106325N

Associated Comments

Balance / Primary Service Port

1/8-27 NPT (with Cover)

Body Configuration

2 SUP / 2 DEL (H)

Control / Secondary Service Port

1/4-18 NPT

Control Port Orientation (CW from Front Face)

90??

Crack Pressure

5.5 PSI

Delivery Port 1

1/2-14 NPT

Delivery Port 2

1/2-14 NPT

Exhaust Port

Dust Shield

Gross weight

1.670 KG

Label Description

R-14

Market Indicator

Aftermarket (New)
Aftermarket New

Maximum Operating Temperature

200 ??F (93 ??C)

Minimum Operating Temperature

-40 ??F (-40 ??C)

Mounting

?y .656 IN

Mounting Bracket Direction

Down

Mounting Bracket Location

Above Cover

Mounting Orientation (CW from Front Face)

180??

Net Weight

1.670 KG

Product Description - Long

Relay Valve

Related Part

Aftermarket Product; 5009431
Spare Part/Kit; 102802N

Supply Port 1

1/2-14 NPT

Supply Port 2

1/2-14 NPT (Plugged)

TMC Washer

RV055

VMRS Description

Relay Valve - Air Brake
