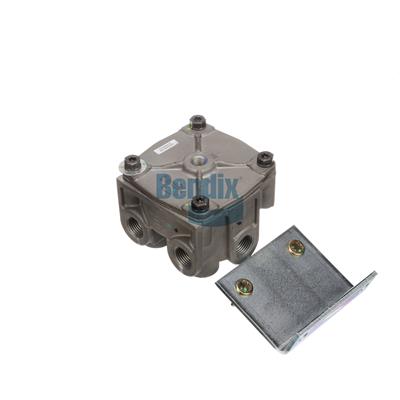

VALVE, BRAKE RELAY (R-12), 1/2" NPT HORIZONTAL DELIVERY PORTS, 3/8" NPT VERTICAL DELIVERY PORTS
$115.75
Special Order Upon Request
Technical Specifications
5009627N
3 lb
Courtesy of Bendix - All rights reserved
2 SUP / 4 DEL (2H + 2V)
1/4-18 NPT
4.0 PSI
1/2-14 NPT
1/2-14 NPT
3/8-18 NPT
3/8-18 NPT
Dust Shield
1.370 KG
R-12
Aftermarket (New)
Aftermarket New
Aftermarket New
200 ??F (93 ??C)
-40 ??F (-40 ??C)
M8 x 1.25-6g Stud (2x)
Down
Above Cover
180??
1.370 KG
Relay Valve
Spare Part/Kit; 102802N
Spare Part/Kit; 5019003
Spare Part/Kit; K047630
Spare Part/Kit; 5019003
Spare Part/Kit; K047630
1/2-14 NPT
1/2-14 NPT
RV040
Relay Valve - Air Brake
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| FORD MOTOR CO | 4C4Z2A449BA | |
| I H C TRUCK | 3564370C91 | EE13010348, 3010348 |
| TRI-STAR FORD SOMERSET | 4C4Z2A449BA |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| INTERNATIONAL | 11-TON | 2004 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
