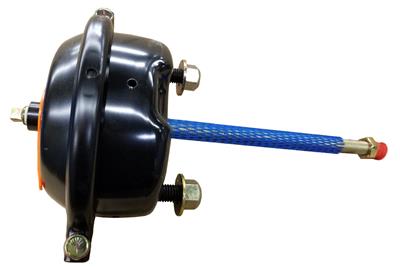

CHAMBER,SERVICE - HALDEX TYPE 24 SERVICE CHAMBER, 2.50" STROKE, 10.00" ROD LENGTH
$46.90
Special Order Upon Request
Interchangeable With SC24L (1)
Technical Specifications
SC24L
12 lb 4 oz
90 DD
3/8-18 NPTF
Service Chamber - Long Stroke - Size T24
2.5 IN
64 MM
64 MM
239 MM
9.4 IN
9.4 IN
3.8 IN
97 MM
97 MM
Orange Alert Stroke Indicator
Self-piloting Dust Shield
Steel Pressure Housing; Powder coated with resistance welded air ports
Sturdy Service Housing; Powder coated for corrosion resistance; Step bottom with 12 gauge steel
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40F
Self-piloting Dust Shield
Steel Pressure Housing; Powder coated with resistance welded air ports
Sturdy Service Housing; Powder coated for corrosion resistance; Step bottom with 12 gauge steel
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40F
150 PSI
Service Chamber Brake
SERVICE CHAMBER-24S-LS
Service Chamber
10 IN
1
2400003
(0) DD
4.75 IN
120.7 MM
120.7 MM
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| FREIGHTLINER/DAIMLER TRK | HDX SC24L, MGM1427001 | |
| I H C TRUCK | FLTS24S18, ZAJ1427001 | FRCS24L, SMRS24S, 455041C92, 5041C92 |
| IHC / NAVISTAR | FLTS24S18 | FRCS24L |
| MACK | 19QE485P18, 5396SC24L, 5554-1427001, 55541427001 | 25163083, 19QE460RP15, 19QE486, 19QE486P13, 19QE486P16, 19QE486P2, 19QE486P22, 19QE486P3, 19QE486P6, 25046161, 25046835, 25057282, 25086331, 25117938, 25120106, 25121051, 25164901, 53962400003, 61522400003, 85107276, 19QE4138, 19QE49305RP1, 20882853, 55541424001, 55541427001P |
| MGM | 1427001, 1427001X | |
| MOTORMAN HD PLUS | 901-3108 | |
| OTHER | D24MD, FLTS24S18, HDX SC24L, MGM1427001, ZAJ1427001, ZAJ1427001X, ZZSC24L, 5396SC24L, 55541427001, 55541427001X | FRCS24L, 455041C92, 5041C92 |
| OTR BRAKES | SC2400LS | |
| VOLVO-WHITE VENDOR DIRECT | MGM1427001, MGM1427001X, MIDSC24L | |
| VOLVO/WHITE | MGM1427001, MIDSC24L |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| FORD | TRACTORS | * |
| FREIGHTLINER | TRACTORS | * |
| INTERNATIONAL | TRACTORS | * |
| KENWORTH | TRACTORS | * |
| MACK | TRACTORS | * |
| MISCELLANEOUS | TRAILER | * |
| PETERBILT | MISCELLANEOUS TRACTOR | * |
| VOLVO | TRACTORS | * |
| WESTERN STAR | TRACTORS | * |
| WHITE | TRACTORS | * |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
