24013

24013

Various GM (08-17), Hyundai, Kia (10-19)

Cabin filter location # 3 - Behind glove box (glove box must be removed) 1. Disconnect dampers from inside of the glove compartment - there are two - one on each side towards the back near the top (unscrew them to remove) 2. Disconnect glove compartment lift on the right side then lower or remove the glove compartment. 3. Remove filter cover by pushing the knob 4. Remove cabin air filter 5. Install new cabin air filter - Ensure direction arrow is pointing towards compartment when installing. 6. Install filter cover. 7. Connect glove compartment lift 8. Connect dampers to glove compartment
W1027W-FR Filtres d'habitacle gnriques W1027W avec BioShield MSDS
Cabin Air Filters with Bioshield SDS
W1027W-SP Filtro de aire genrico para la cabina con BioShield MSDS
Instruction Sheet 24013

A

LD

0.75 in

Closed

10 in

WIX Cabin Air Filters remove pollen, dust, soot and other air borne contaminates from the air inside a vehicle for normal and severe driving conditions. WIX cabin air filters are enhanced with Microban antimicrobial technology which inhibits the growth of microbes on filter media and protects against damaging bacteria, mold, and mildew. Where applicable, combination odor removing media reduces odors from the exhaust systems of nearby vehicles. WIX cabin air filters are recommended for OEM filter change interval. WIX offers a full line of high efficiency cabin air filters for passenger cars and light trucks.

Particulate

0.00 Micron

WIX FLTR CABINE
WIX Filtro De Aire De Cabina

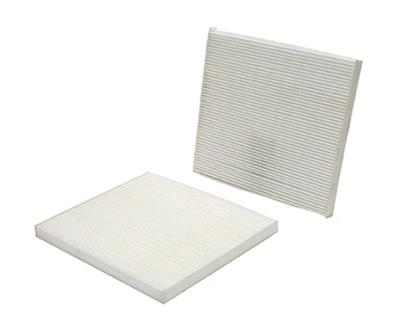

WIX Cabin Air Filter

WIX Cabin Air Panel

Cabin Air Filter
FLTR CABINE
Filtro De Aire De C

Cabin Air Panel

8.86 in
