24752

24752

5 oz

Acura (98-03), Honda (98-02) - 2 per box

Instruction Sheet 24752
W1027W-SP Filtro de aire genrico para la cabina con BioShield MSDS
W1027W-FR Filtres d'habitacle gnriques W1027W avec BioShield MSDS
Cabin filter location # 3 Behind glove box (glove box must be removed) 1 - Open glove-box - remove the locking tabs on both sides of the glove -box 2 - Remove the three screws holding the compartment in place then close the glove-box. 3 - Remove the access panel directly under the glove-box. 4 - Remove the two screws under the access panel 5 - Remove the access panel under the radio - remove the screw on the right side under this panel. 6 - Remove the kick panel under the glove-box - there are two screws on the underside of the glove-box and one screw attached to the metal bar. Lift out the entire glove compartment - disconnect the wire on the left side. 7 - Remove the two remaining screws on both sides of the metal bar covering the cabin air filter cover. 8 - Open the cabin air cover from the bottom - remove the two filters and replace.
Cabin Air Filters with Bioshield SDS

D

LD

1.181 in

Closed

11.575 in

WIX Cabin Air Filters remove pollen, dust, soot and other air borne contaminates from the air inside a vehicle for normal and severe driving conditions. WIX cabin air filters are enhanced with Microban antimicrobial technology which inhibits the growth of microbes on filter media and protects against damaging bacteria, mold, and mildew. Where applicable, combination odor removing media reduces odors from the exhaust systems of nearby vehicles. WIX cabin air filters are recommended for OEM filter change interval. WIX offers a full line of high efficiency cabin air filters for passenger cars and light trucks.

Particulate

0.00 Micron

WIX FLTR CABINE

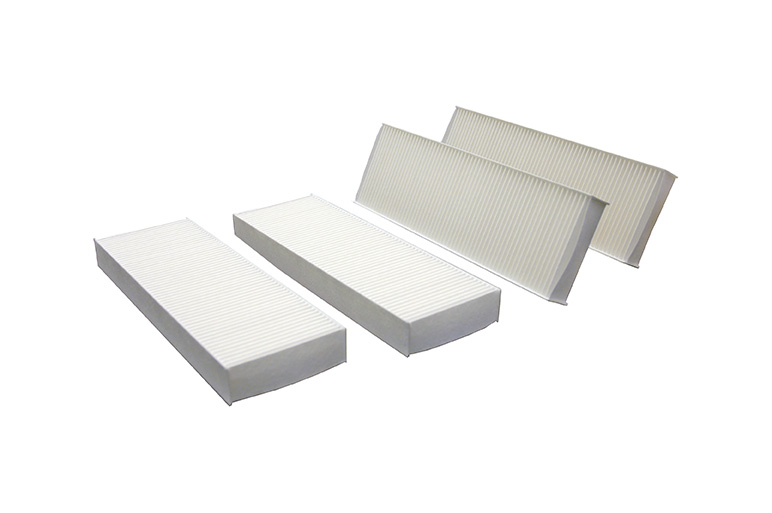

WIX Cabin Air Filter
WIX Filtro De Aire De Cabina

WIX Cabin Air Panel

FLTR CABINE
Filtro De Aire De C
Cabin Air Filter

Cabin Air Panel

3.779 in
