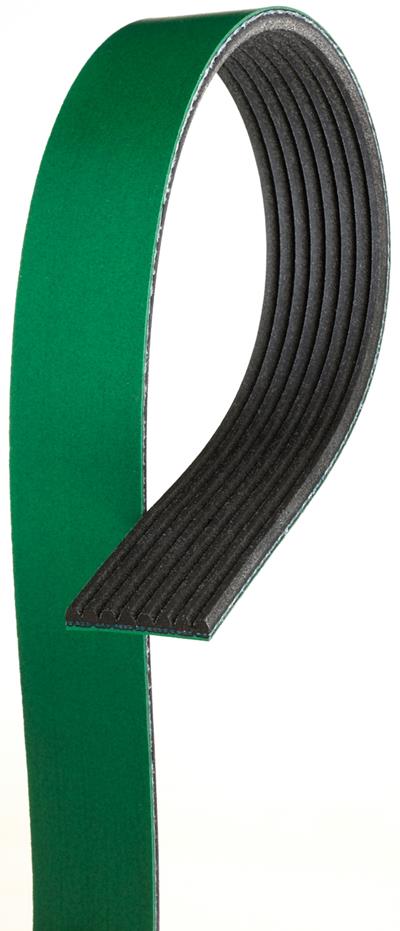

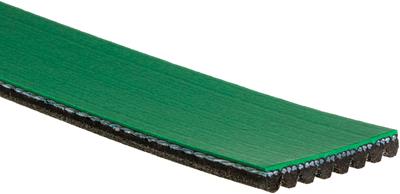

Belt Serpentine
$26.46
Special Order Upon Request
Interchangeable With K080560HD (5)
Technical Specifications
K080560HD
1 oz
1996-1992 Freightliner, FL70, Cummins B Series 5.9 L Diesel, Fan & Alt.
Gates FleetRunner Micro-V Belts are designed for the toughest applications. FleetRunner construction provides superior flexibility, stability, load capacity, and unsurpassed belt life. Patented materials deliver peak performance at extreme prolonged operating temperatures, making this belt the ultimate problem solver. An advanced blend of EPDM rubber technology withstands the modern threats of deterioration from increased exposure to ozone and water-based coolants. FleetRunner does this all while providing the lowest cost per mile for fleets, including 3/4 and 1 ton pickups.
- Belt of choice by fleets, including 3/4 and 1 ton pickups
- Lowest cost per mile
- Consistently outperforms all competitors
- Outstanding crack resistance at extreme temperatures
- Problem solver
- Designed for the toughest applications
Gates - Driven By Possibility
EPDM, Polyester Cord
8
56.625
1439
OE Improved
V-Ribbed Belt
Automotive V-Ribbed Belt (Heavy Duty)
Belt
K
1.087
28
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| AC DELCO | K080560HD, 8K560 | |
| CAR QUEST | 5080560 | |
| CONTINENTAL-VEYANCE | 4080560, 560K8MK | |
| DAYCO CORP | 5080560 | |
| GATES RUBBER CO | K080560 | |
| I H C TRUCK | FLTBT560K8 | L4080560, UPT5080560 |
| NAPA | 25-080560, 25-080560HD, 25080560, 25080560HD | |
| WORKHORSE PARTS | K080560, K080560HD, 4080560 |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| CHEVROLET | P30 | 1990-1991 |
| FREIGHTLINER | CENTURY CLASS | 2001 |
| FREIGHTLINER | FL50 | 1995-1996 |
| FREIGHTLINER | FL60 | 1992-1996 |
| FREIGHTLINER | FL70 | 1992-1996 |
| FREIGHTLINER | FL80 | 1992-1996 |
| GMC | P3500 | 1989-1991 |
| INTERNATIONAL | 8100 | 1999 |
| KENWORTH | 13-210 | 1988-1989 |
| KENWORTH | 22-210 | 1989 |
| PETERBILT | 320 | 1987-1996, 1998 |
| PETERBILT | 362 | 1985-1994 |
| VOLVO | WX | 1996 |
| WHITE | WX | 1984-1988 |
| WHITE/GMC | WX | 1988-1995 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
