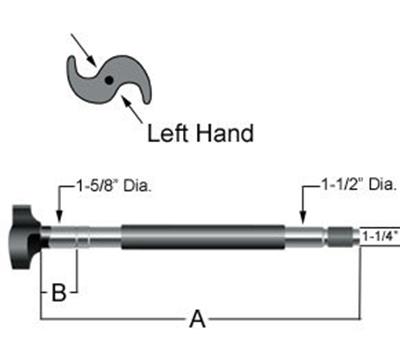

CAMSHAFT,BRAKE - 1-1/2" 28 SPLINE FOR SPICER "XL" TRAILER W/ 16-1/2" BRAKES (SINGLE GROOVE) -20-7/16" LENGTH - 1-5/8" JOURNAL-2-17/64" TO GROOVE - LEFT
$39.83
Special Order Upon Request
Interchangeable With CS41416 (2)
Technical Specifications
CS41416
Dana Spicer with 16-1/2" "Xtralife" Brakes, MUST REPLACE RIGHT & LEFT HAND S-CAMS WHEN "XTRALIFE" CAMS ARE USED TO REPLACE EARLY DESIGN S-CAMS.
CQ67111
20.4375 IN
1.5 IN
1.125 IN
28
Disc Brake Bushing
CAMSHAFT
CAMSHAFT
Spicer M16WKL25-205
Left Hand
1.625 IN
2.21875 IN
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| EUCLID IND INC | E9733 | |
| FREIGHTLINER/DAIMLER TRK | TDA R607229 | |
| MERITOR AUTOMOT./ROCKWELL | E9733, R607229 | |
| OTHER | R607229, 8235R607229 | UPTM3697L |
| ROCKWELL | R607229 | |
| VOLVO-WHITE VENDOR DIRECT | TDAR607229 | |
| WORKHORSE PARTS | R607229 |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| AXLE | DANA SPICER - TRAILER AXLE (16-1/2" XL BRAKES) | * |
| FRUEHAUF | TRAILER | * |
| GREAT DANE | TRAILER | * |
| HYUNDAI | TRAILER | * |
| REITNOUER | TRAILER | * |
| STOUGHTON | TRAILER | * |
| WABASH | TRAILER | * |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
