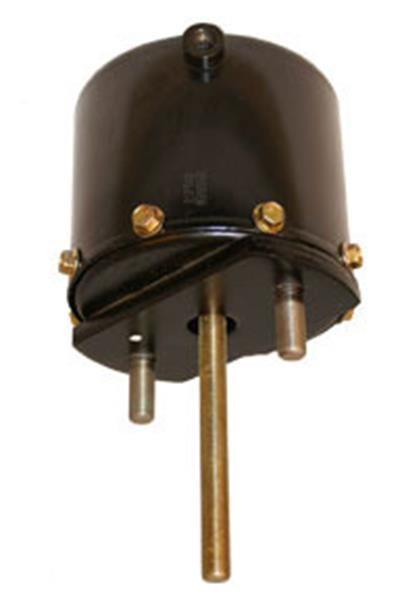

Brake Chamber
$714.83
& FREE Ground Shipping *
Special Order Upon Request
Technical Specifications
MA15663
18 lb 2 oz
MAXIBRAKE R-Series - Air Application - Pull Type
All steel housing provide strength, durability and extra corrosion resistance.
Aluminum piston and nylon bearings provide maximum guidance stability that diffuses lateral and twisting motion.
Deeper spring cavities and optional spring force outputs offer uniform output and longer service life.
Steel alloy springs are epoxy coated to protect against rust and corrosion
Unit cannot be released manually, making it inoperative. This insures the vehicle cannot be moved until the air supply is at a safe level.
Aluminum piston and nylon bearings provide maximum guidance stability that diffuses lateral and twisting motion.
Deeper spring cavities and optional spring force outputs offer uniform output and longer service life.
Steel alloy springs are epoxy coated to protect against rust and corrosion
Unit cannot be released manually, making it inoperative. This insures the vehicle cannot be moved until the air supply is at a safe level.
125 PSI
KSMR3PT50-800NN
Single packs - 1 per box.
MAXIBRAKE Spring Brake
ACTUATOR-R MAXI-R3PT50
PSB R series
8 IN
BA1
RN21AD
50
3 IN
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| MISCELLANEOUS | TRAILER | * |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
