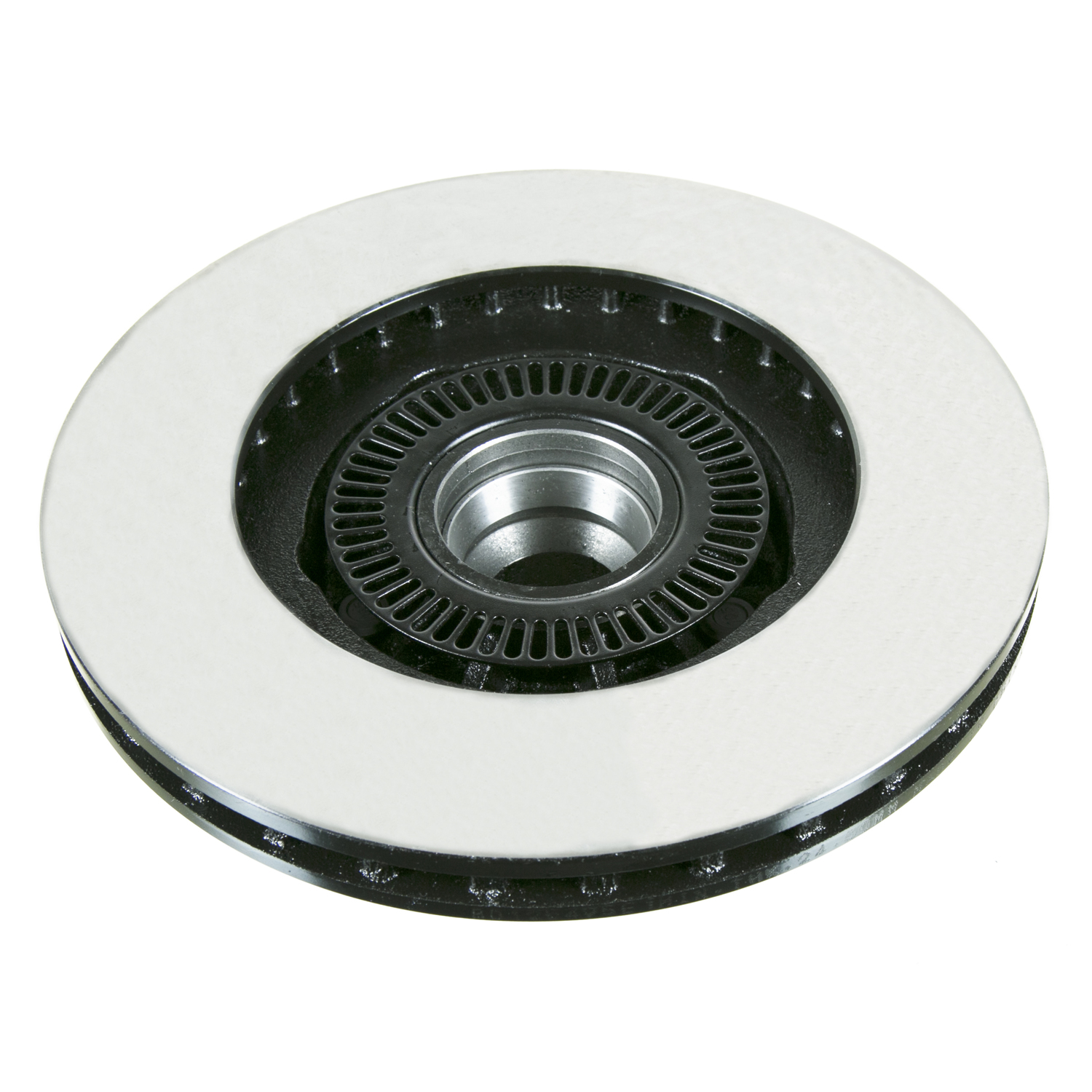

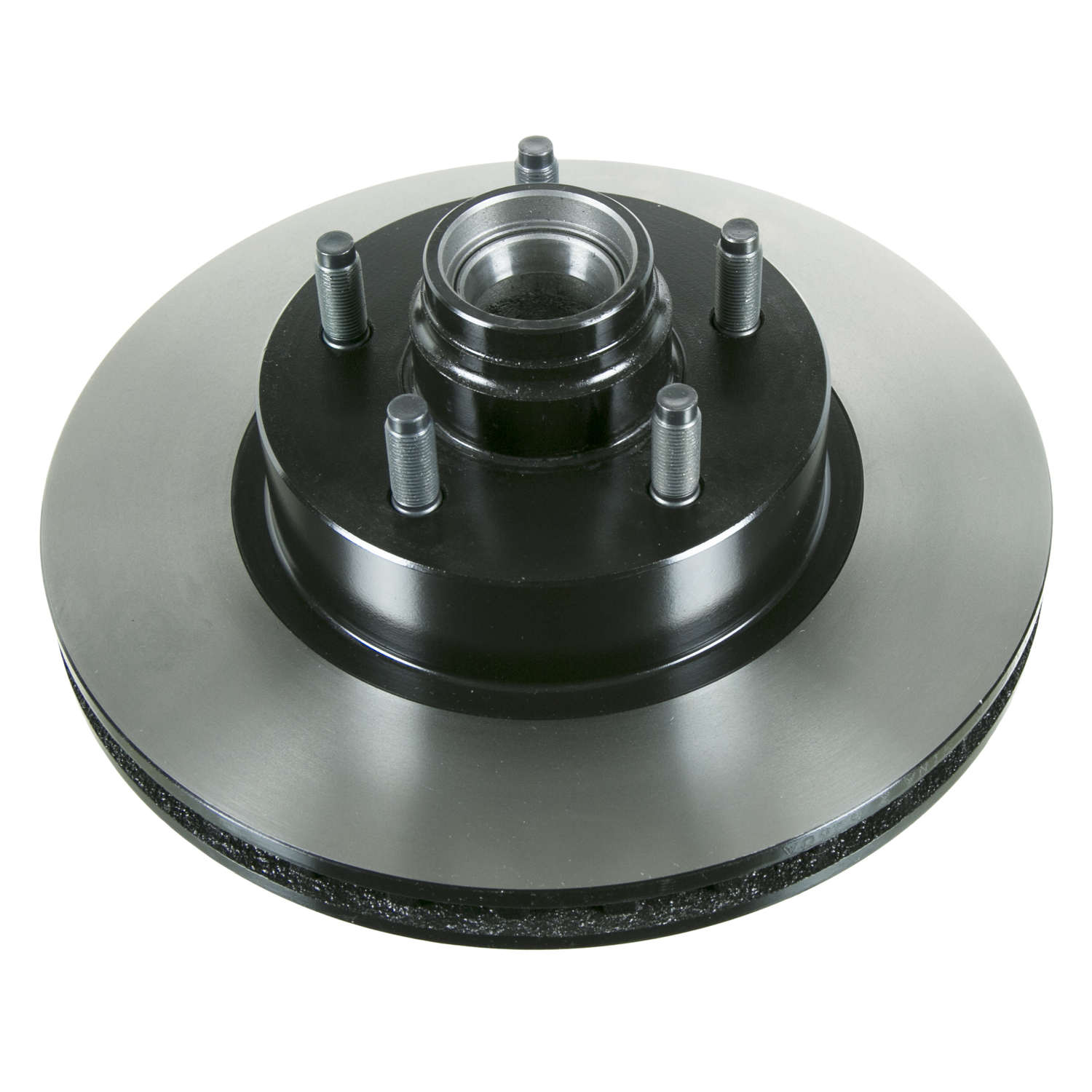

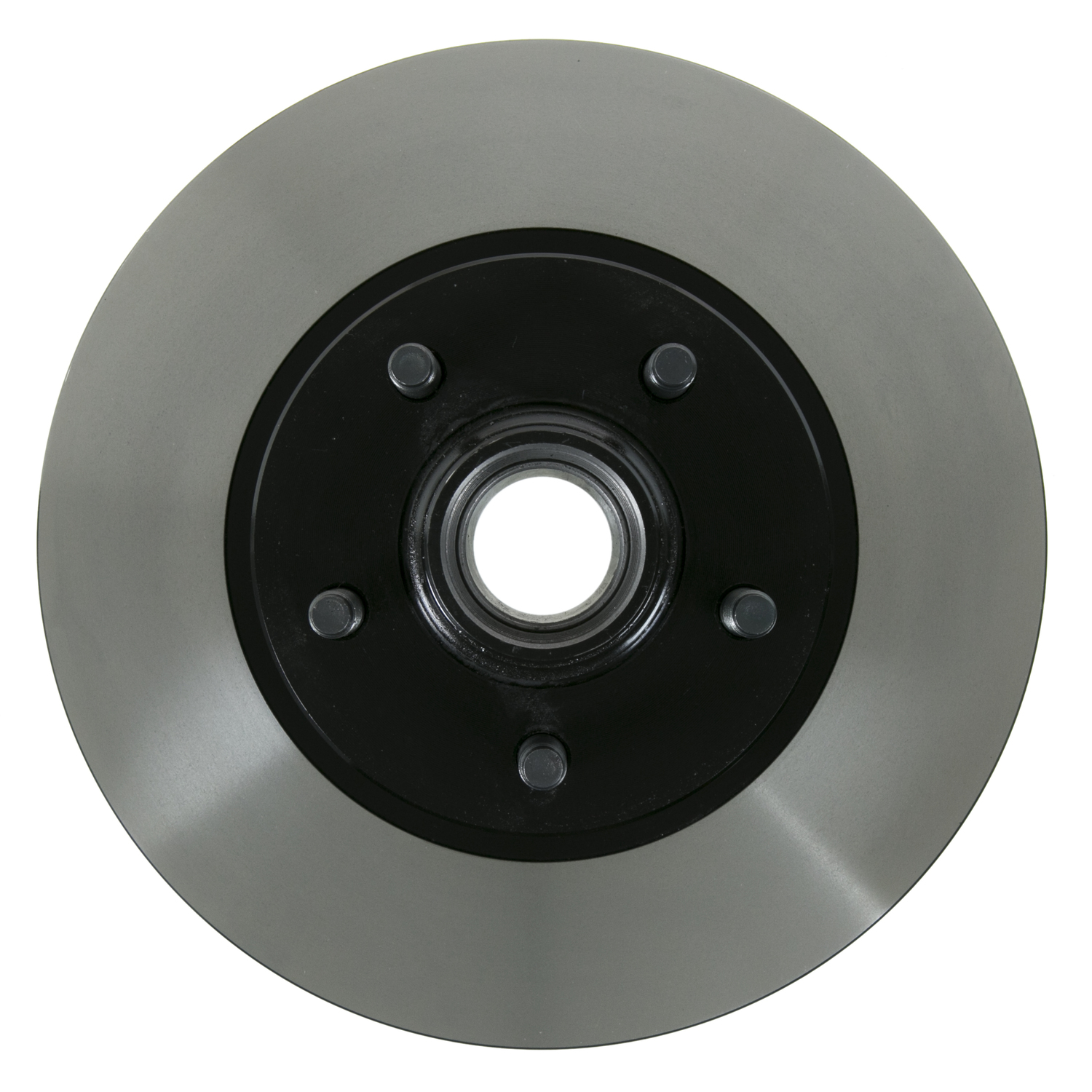

ROTOR,BRAKE - FRONT, CRYO TREATED, 5 STUD
$97.82
Special Order Upon Request
Interchangeable With BD125495E (3)
Technical Specifications
BD125495E
Ford Explorer (F) 01-95; Ranger (F) 09-98; Mazda B2300 (F) 10-01; B2500 (F) 01-99; B3000 (F) 07-99; B4000 (F) 05-99; Mercury Mountaineer (F) 01-97
4.500 IN
114.3 MM
114.3 MM
E-Shield coating prevents corrosion
Smooth surface finish provides less pad break-in time
Vapor Corrosion Inhibitor (VCI) bag reduces rotor prep & saves installation time
More effective and safer stopping power due to increased surface area which improves heat dissipation
Patented vane/rib design reduces rotor noise
Superior metallurgy and tighter tolerances for optimal performance
Wagner Brake rotors with E-Shield coating feature an exclusive protective coating to all non-braking surfaces to prevent corrosion. These premium application-specific rotors with patented vane designs are validated by Wagner Brake engineers.
26.0 MM
1.023 IN
1.023 IN
11.270 IN
286.5 MM
286.5 MM
Wagner Brake Hub & Rotor
Brake Hub & Rotor
Brake Hub & Rotor
Disc Brake Rotor
Yes
Solid
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| AIMCO ITT | 54029 | |
| BENDIX COMMERC. VEH.SYST. | 145076 | |
| BENDIX DIV ALLIED SIGNAL | 145076 | |
| BRAKE PARTS INC/RAYBESTOS | 78-86597 | 7886597 |
| CENTRIC PARTS | 120.65051, 121.65051 | 125.65051 |
| FED. MOGUL / WAGNER BRAKE | BD125495 | 125495 |
| FORD MOTOR CO | YL2Z1V102A | F87Z1102GA, YL2Z1V102CA, YL2Z1V102CC, 2U2Z1V102DA, 4L5Z1102BA |
| FRICTION ONE BRAKE TECH | PMR205242 | |
| MAGMA | PMR205167 | PMR205242 |
| MAGMA BRAKE | PMR205167 | |
| MOTORCRAFT (DIV OF FORD) | BRRC100 | BRRF64, BRR25, BRR298 |
| NAPA | UP86567, UP86597, 4886597, 86597 | |
| OTHER | 121.65051, 1527704, 15527704, 4L5Z1102BA, 4L5Z1102BAFD, 4L5Z1102BAHD, 66597R, 66597RC | 13246104 |
| RAYBESTOS / BRAKE PARTS | 66597, 66597R | |
| TRI-STAR FORD SOMERSET | YL2Z1V102A | YL2Z1V102CC |
| UQUALITY AUTOMOTIVE PROD | 2054029, 54029 | |
| WBI VALUE LINE | 4L5Z1102BAFD |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| FORD | EXPLORER | 1995-2001 |
| FORD | FFV | 2000-2001 |
| FORD | RANGER | 1998-2011 |
| MAZDA | B2300 | 2001-2010 |
| MAZDA | B2500 | 1999-2001 |
| MAZDA | B3000 | 1999-2008 |
| MAZDA | B4000 | 1999-2005 |
| MERCURY | MOUNTAINEER | 1997-2001 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
