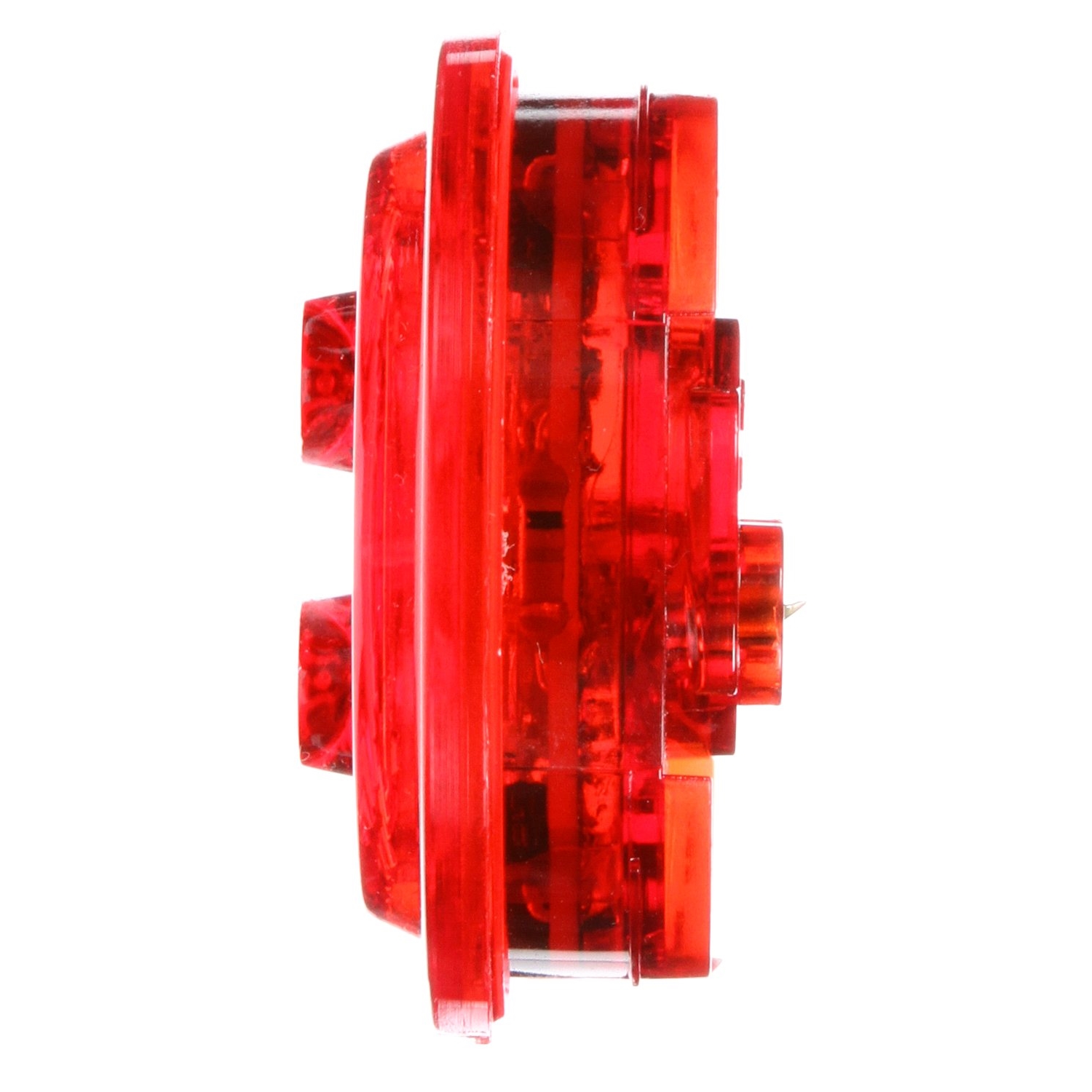

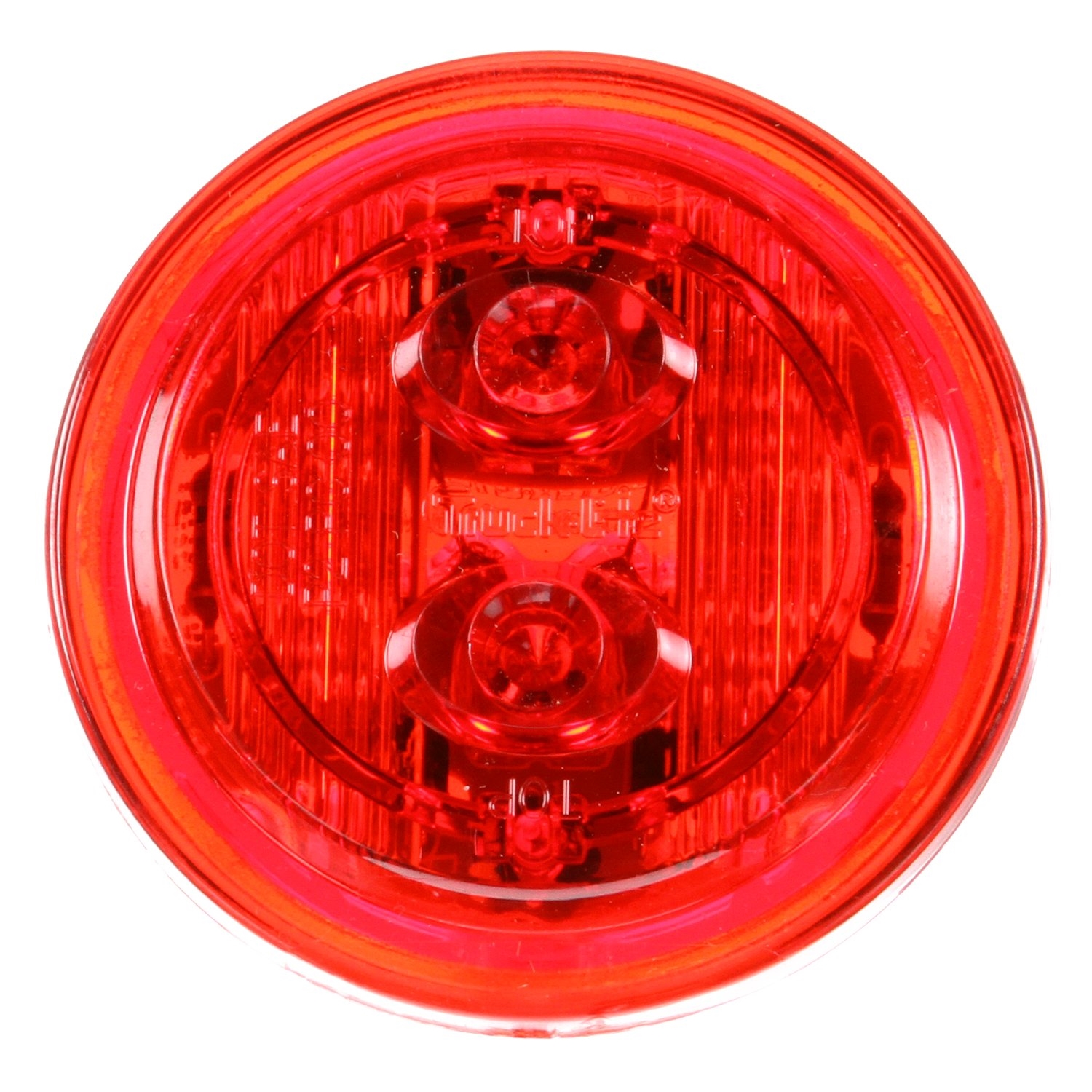

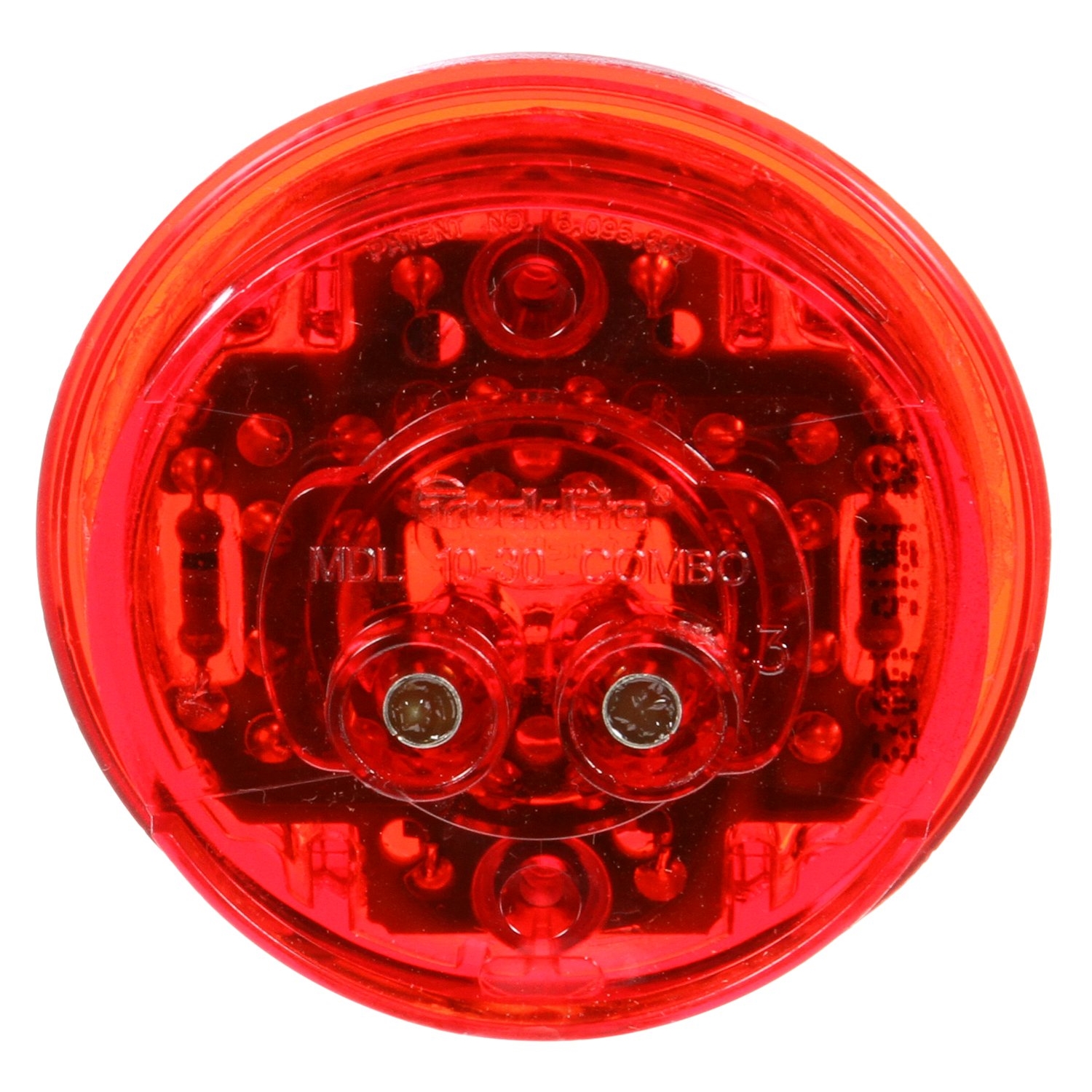

30 SERIES, LOW PROFILE, LED, RED ROUND, 6 DIODE, MARKER CLEARANCE LIGHT, PC, PL-10, 12V
$21.31
22 in stock
Technical Specifications
30285R
2 oz
0735111065777
034-004-253
Most advanced and cost effective 2" clearance and marker lamp
Highest quality LED Lighting products on the market from a brand you can trust
SAE PC rated for combination clearance/marker applications
Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
LEDs have no filament, therefore are not susceptible to shock and vibration
Highest quality LED Lighting products on the market from a brand you can trust
SAE PC rated for combination clearance/marker applications
Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
LEDs have no filament, therefore are not susceptible to shock and vibration
DOT
CMVSS108
SAE
FMVSS 108
CMVSS108
SAE
FMVSS 108
Marker Clearance Light
No
30 Series
P2
PC
PC
Round
Polycarbonate
Sealed
6
LED

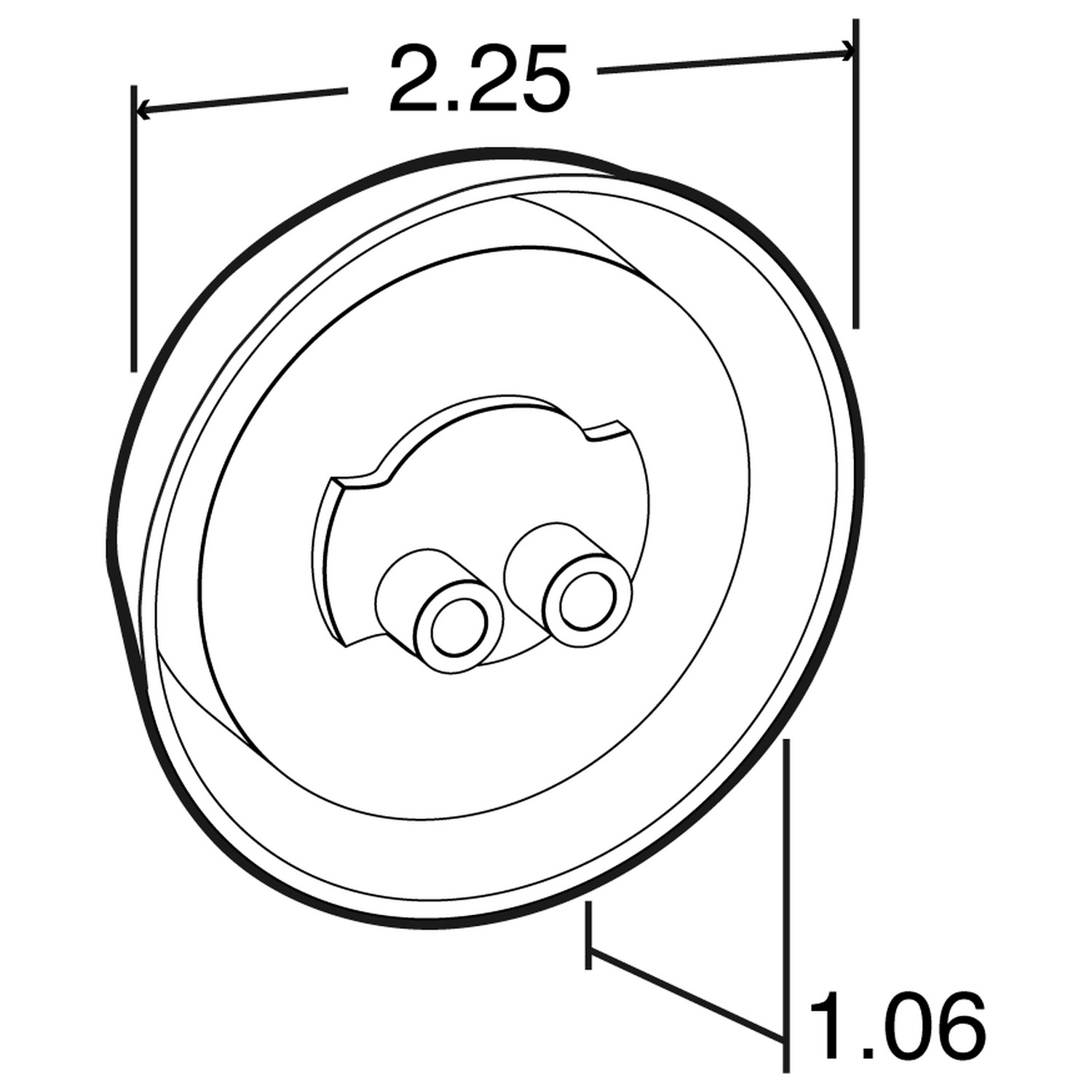

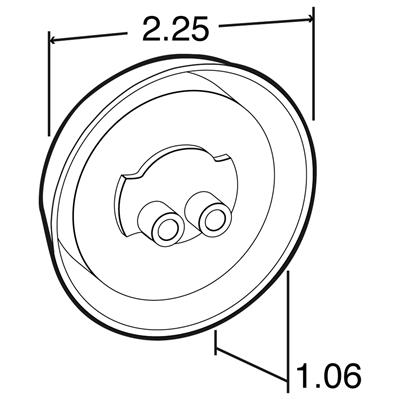

2"
Grommet Mount
PL-10
Polycarbonate
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| FLEETPRIDE | PTL3009R | |
| FREIGHTLINER/DAIMLER TRK | TL30285R | |
| GREAT DANE TRL/ AURORA | TL30285R | |
| KENWORTH | 30285R | |
| OTHER | TL30285R, 30285R3 | |
| TRUCK-LITE CO | 30285R3 | |
| VOLVO-WHITE VENDOR DIRECT | TL30285R | |
| WORKHORSE PARTS | 30285R |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| GREAT DANE | TRAILER | *, 1998-2006, 2008-2009, 2011-2017 |
| STOUGHTON | TRAILER | 2008 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
