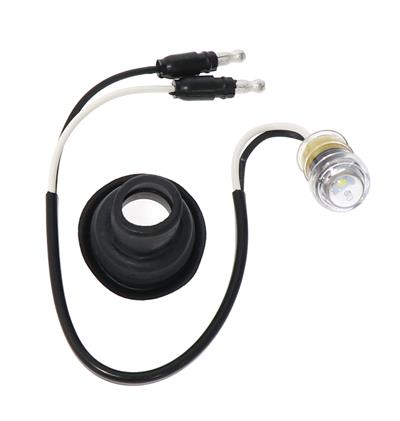

33 SERIES, LED, 1 DIODE, LICENSE LIGHT, ROUND, GROMMET MOUNT, HARDWIRED, .180 BULLET, 12V, KIT
$27.54
Typically ships to Wheeler in 5-10 business days
Technical Specifications
33010C
1 oz
0735111175605
034-002-042
Stealth, low profile design is resistant to damage, and hides lamp away from view to help prevent theft
Does not require a bracket, so it can be mounted directly into the vehicle
LEDs draw less current, allowing more power for other vehicle requirements

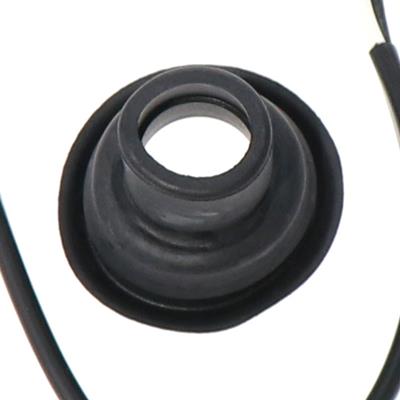

Product designed to fit in 33705 grommet
US Patent 5,943,798
Reduces lighting costs due to physical damage and heat entrapment
Hardwired lamp design is easily retrofitted, with only a 1-3/16'' mounting hole required for grommet installation
Top and side plate mounting options
Electronics are completely sealed in epoxy to resist corrosion and moisture
When mounted into a module, all wires are hidden inside module, protecting against damage from corrosion

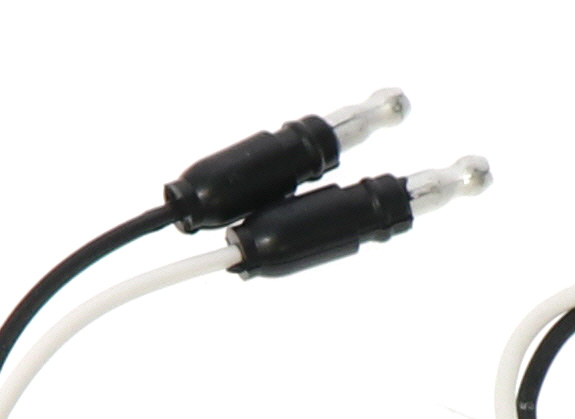

180 Bullet connectors
Does not require a bracket, so it can be mounted directly into the vehicle
LEDs draw less current, allowing more power for other vehicle requirements
Product designed to fit in 33705 grommet
US Patent 5,943,798
Reduces lighting costs due to physical damage and heat entrapment
Hardwired lamp design is easily retrofitted, with only a 1-3/16'' mounting hole required for grommet installation
Top and side plate mounting options
Electronics are completely sealed in epoxy to resist corrosion and moisture
When mounted into a module, all wires are hidden inside module, protecting against damage from corrosion
180 Bullet connectors
DOT
SAE
FMVSS 108
CMVSS 108
SAE
FMVSS 108
CMVSS 108
License Light
Yes
33 Series
L
Rubber
Round
Polycarbonate
Sealed
1
LED
.75"
Grommet Kit
Black
Hardwired
18
Polycarbonate
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| GREAT DANE TRL/ AURORA | TRU33010C | |
| MORGAN OLSON/ GRUMMAN | 46002427 | |
| OTHER | B002ISYSBO |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| WORKHORSE | W62 | 2012 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
