SIGNAL-STAT, INCANDESCENT, RED/CLEAR POLYCARBONATE LENS, UNIVERSAL, COMBO BOX LIGHT, 3 STUD , LICENSE LIGHT, PACKARD , 12V
$45.87
Special Order Upon Request
Technical Specifications
5315Y101
14 oz
0614046204362
034-002-013
Navistar #1661281C91

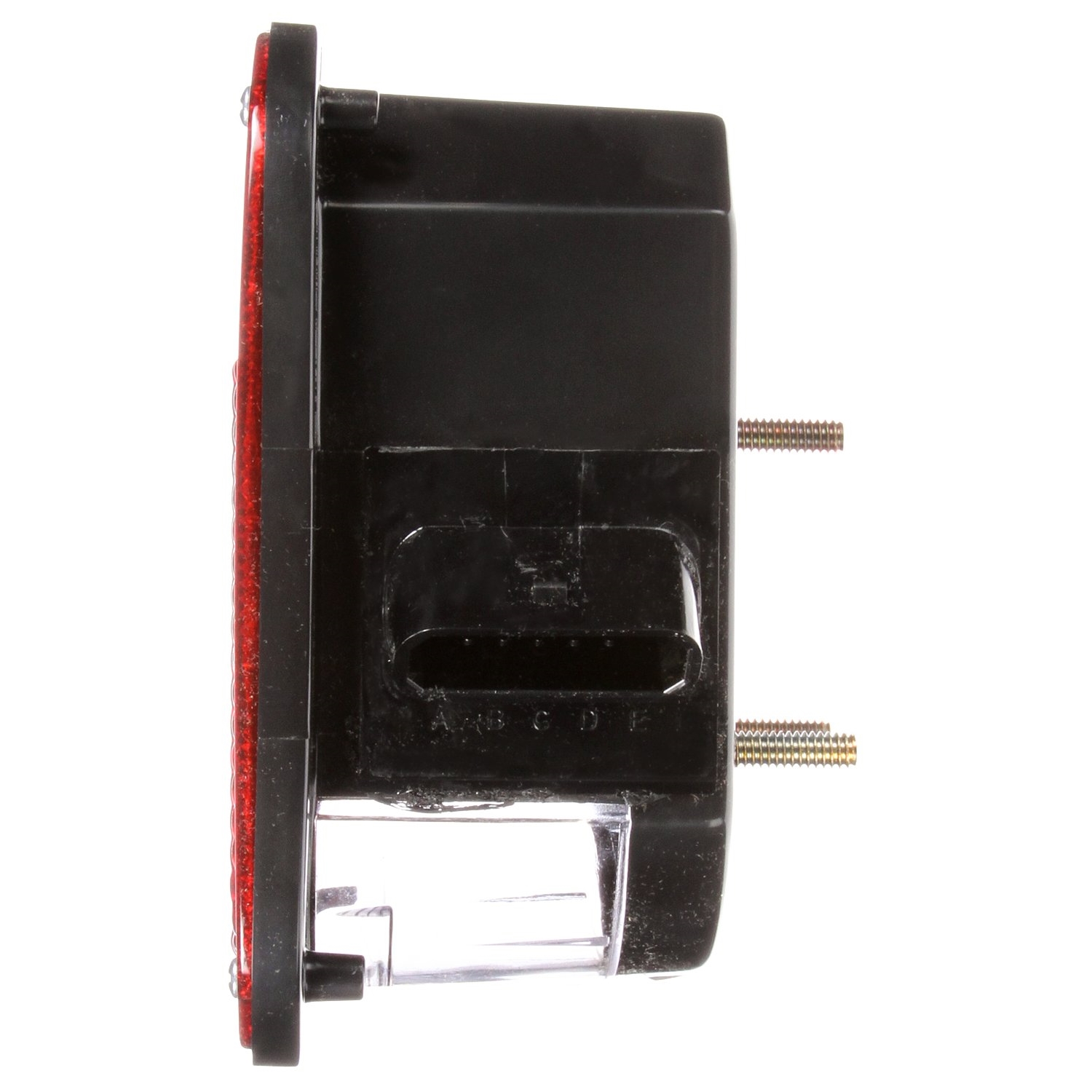

5315Y101 has dual Metri-Pack connectors-one on either side of the lamp
5316Y101 uses #9469 jumper harness
5315Y101 uses #9470 main harness
Dual optic acrylic lens
Permastat body provides impact resistance
Navistar #1661282C91
RH lamp popular replacement for GM/IH OE #56139474, #15565732
Combination stop, tail, turn, back-up and reflex reflector
5315Y101 has dual Metri-Pack connectors-one on either side of the lamp
5316Y101 uses #9469 jumper harness
5315Y101 uses #9470 main harness
Dual optic acrylic lens
Permastat body provides impact resistance
Navistar #1661282C91
RH lamp popular replacement for GM/IH OE #56139474, #15565732
Combination stop, tail, turn, back-up and reflex reflector
SAE
FMVSS 108
DOT
FMVSS 108
DOT
Combination Box Lights
No
Signal-Stat
S2
A
L
(2)R
I6
T
A
L
(2)R
I6
T
Rectangular
Polycarbonate
Bulb Replaceable
2
Incandescent

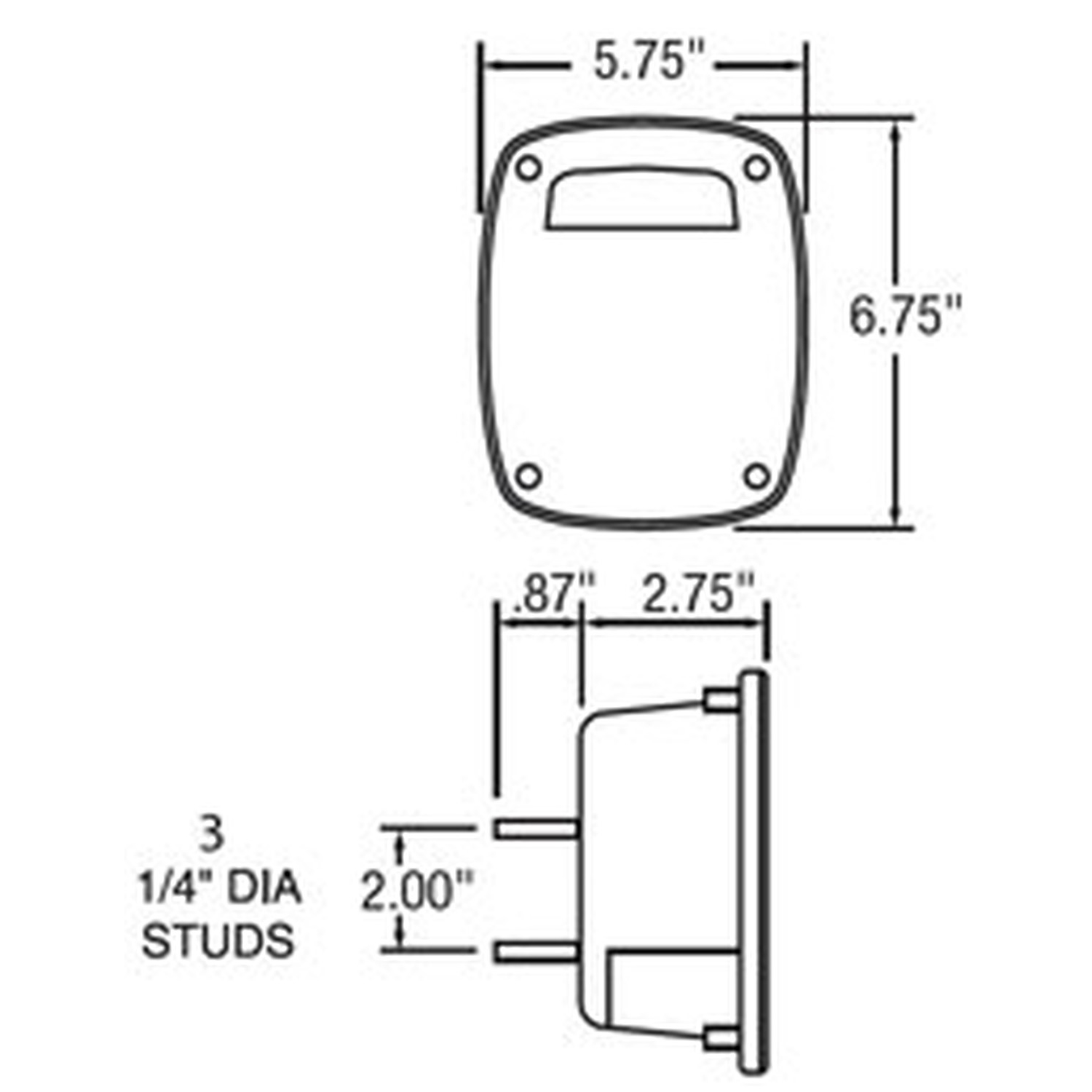

5"x6"
3 Stud Mount
Packard Connector
Polycarbonate
Universal
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| OTHER | TLD5315Y101, 5315Y101 | 80383R |
