Interchangeable With SC09 (1)
Technical Specifications
SC09
4 lb 3 oz
90 DD
Service Chamber - Size T09
1.75 IN
44 MM
44 MM
7.5 IN
190 MM
190 MM
3.7 IN
94 MM
94 MM
Orange Alert Stroke Indicator
Self-piloting Dust Shield
Steel Pressure Housing; Powder coated with resistance welded air ports
Sturdy Service Housing; Powder coated for corrosion resistance; Step bottom with 12 gauge steel
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40F
Self-piloting Dust Shield
Steel Pressure Housing; Powder coated with resistance welded air ports
Sturdy Service Housing; Powder coated for corrosion resistance; Step bottom with 12 gauge steel
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40F

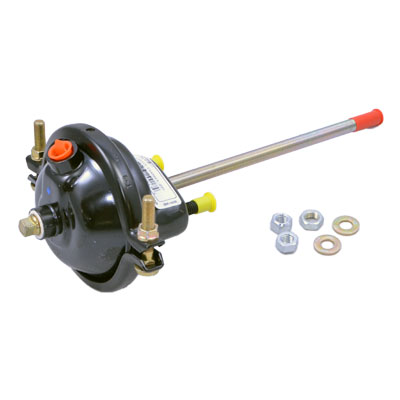

Service Chamber Brake
SERVICE CHAMBER-09S
Service Chamber
10.4 IN
1
MA36090
(0) DD
3 IN
76.2 MM
76.2 MM
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| FREIGHTLINER/DAIMLER TRK | HDX SC09, HLD90548040 | |
| GREAT DANE TRL/ AURORA | HALSC09, 90548040 | |
| MACK | 5396SC09 | 5396KN36090, 5396MA36090 |
| OTHER | D9BB, HLD90548040, ZZSC09, 5396SC09 | |
| OTR BRAKES | SC09 | |
| SAF-HOLLAND HITCH | 90548040 | |
| STOUGHTON | NW905-48-040 | |
| VOLVO-WHITE VENDOR DIRECT | MIDSC09 |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| FORD | TRACTORS | * |
| FREIGHTLINER | TRACTORS | * |
| INTERNATIONAL | TRACTORS | * |
| KENWORTH | TRACTORS | * |
| MACK | TRACTORS | * |
| PETERBILT | MISCELLANEOUS TRACTOR | * |
| STOUGHTON | TRAILER | 2001-2002 |
| VOLVO | TRACTORS | * |
| WESTERN STAR | TRACTORS | * |
| WHITE | TRACTORS | * |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
