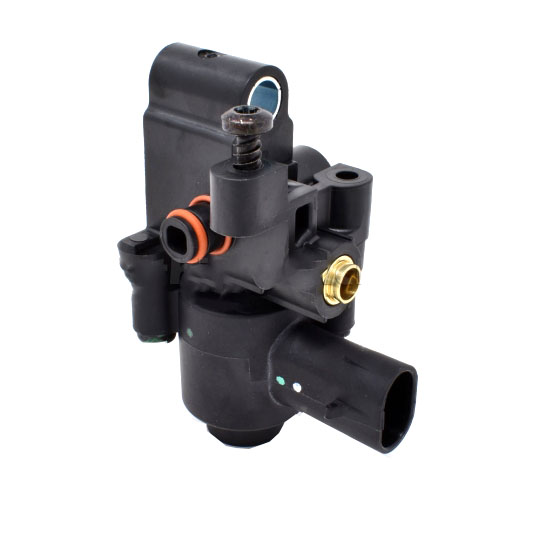

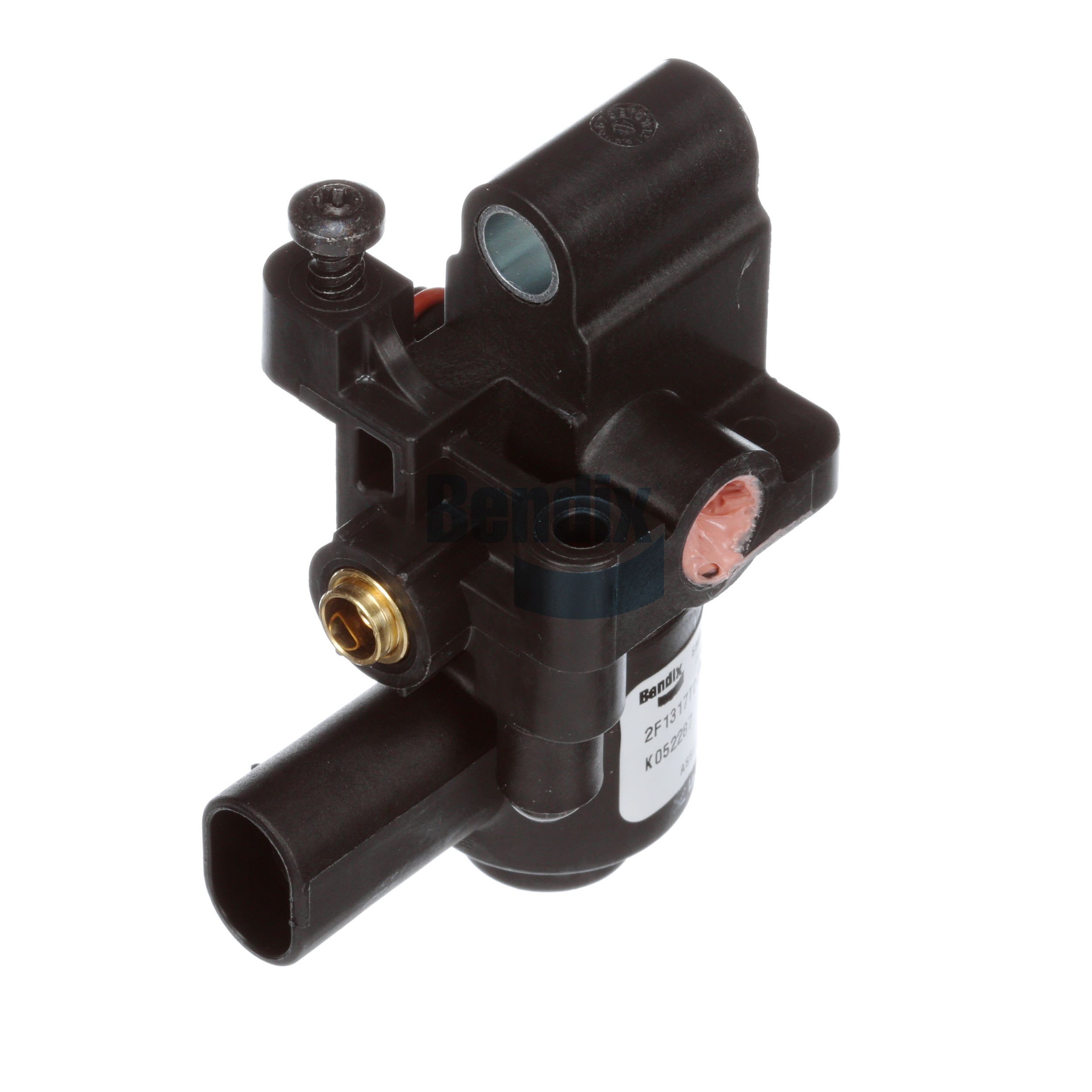

SOLENOID ASSEMBLY, SMS-9700, 12V, NORMALLY CLOSED, NO SUPPLY FITTING
$92.50
Available to Order
| Item Number | Warehouse | Quantity |
|---|---|---|
| K073055 | Mississippi (MS1) | 8 |
Technical Specifications
K073055
7 oz
Courtesy of Bendix - All rights reserved
Not applicable to this part
EXH must face downward/horizontal. Do not cover/paint exhaust.
Metri-Pack 150 Series 2-Way Sealed Connector (Male)
1/4 PTC
?y .070 IN
1N4004
0.181 KG
87.300 MM
?y .070 IN
SMS-9700
61.800 MM
Aftermarket (New)
Aftermarket New
Aftermarket New
185 ??F (85 ??C)
-40 ??F (-40 ??C)
?y .440 IN
0.181 KG
60-150 PSI
9 VDC -16 VDC
NC - Normally Closed (Black)
Solenoid Assembly
Stacking Manifold
Aftermarket Product; 3778148F91
Aftermarket Product; 3778152F91
Aftermarket Product; K151713
Aftermarket Product; 3778152F91
Aftermarket Product; K151713
19 ?? 1 Ohms (at 70??F)
Open supply bore
Open interlock stem
Solenoid Valve - Air
44.500 MM
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| FREIGHTLINER/DAIMLER TRK | BW K073055 | BW K083202 |
| I H C TRUCK | BXK073055 | EE13014009, 3014009 |
| KENWORTH | K073055BXW | |
| OTHER | BW K073055, BXK073055 | EE13014009 |
| VOLVO-WHITE VENDOR DIRECT | BW K073055 |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| KENWORTH | MISCELLANEOUS TRACTOR | * |
| KENWORTH | MISCELLANEOUS TRUCK | * |
| PETERBILT | MISCELLANEOUS TRACTOR | * |
| PETERBILT | MISCELLANEOUS TRUCK | * |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
