Interchangeable With 9420HD (2)
Technical Specifications
9420HD
4 oz
38
2006-05 Isuzu, NPR, Isuzu 4HK1-TC Diesel, Fan & Alt.
Designed for the toughest applications, FleetRunner construction provides superior flexibility, stability, load capacity, and unsurpassed belt life. Patented materials deliver peak performance at extreme prolonged operating temperatures making this belt the ultimate problem solver. An advanced blend of EPDM rubber technology withstands the modern threats of deterioration from increased exposure to ozone and water-based coolants. FleetRunner does this all while providing the lowest cost per mile for fleets, including 3/4 and 1 ton pickups.

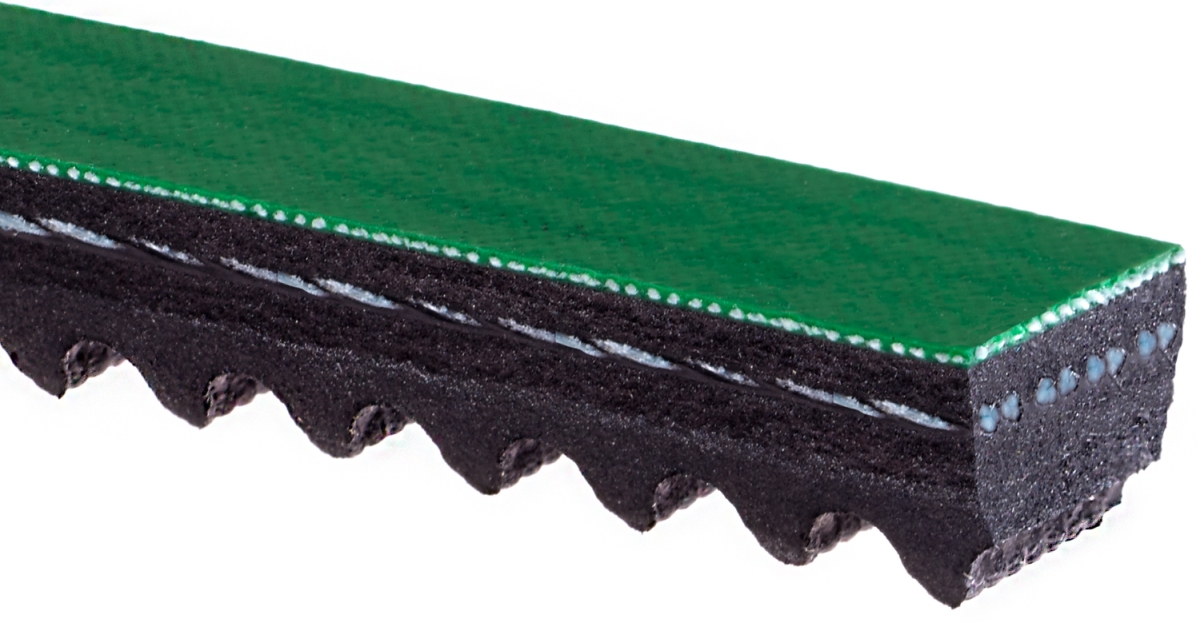

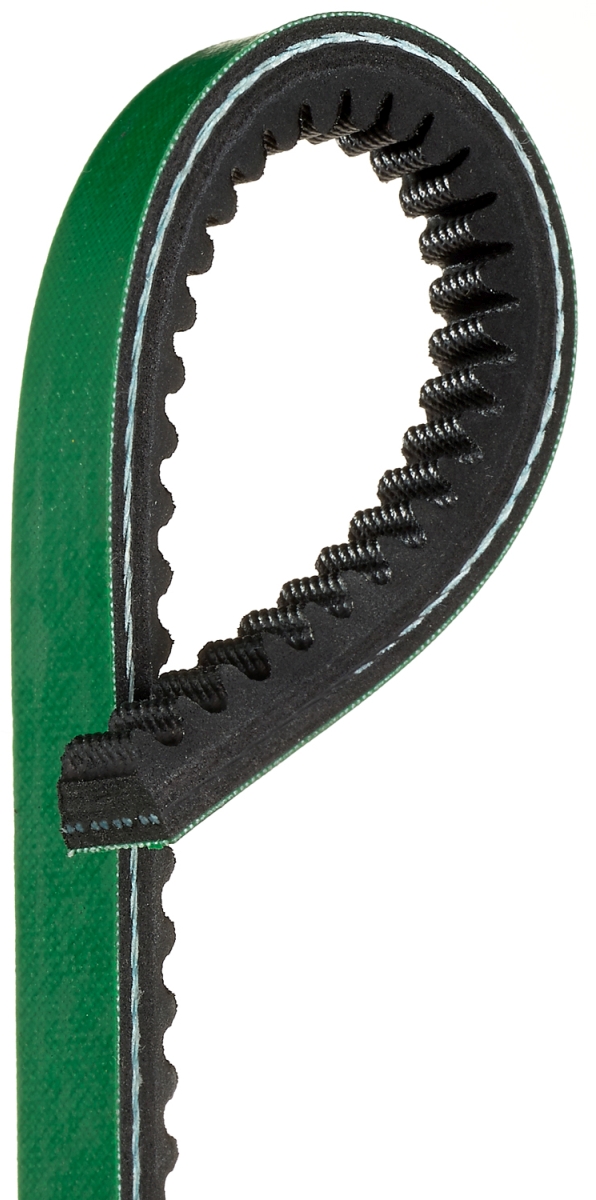

Gates Green Stripe FleetRunner V-Belts Can Take the Heat.
- Heavy-Duty construction resists cracking and wear
- Oil and heat resistant
- Outperforms the competition on the most troublesome drives
- Patented EPDM construction with distinct green gum back
Gates - Driven By Possibility
42.34 IN
1075 MM
1075 MM
OE Improved
V-Belt
High Capacity V-Belt (Heavy-Duty)
Belt
HC50
13 MM
.51 IN
.51 IN
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| AC DELCO | 9420HD | |
| ADVANCE AUTO PARTS | 9420HD | |
| CAR QUEST | 9420HD | |
| CONTINENTAL-VEYANCE | 17421 | |
| DAYCO CORP | 17420 | |
| GATES RUBBER CO | 9420 | |
| MACK | 88GB439P421 | 25006980, 25094407, 25622933, 25623002, 88GB177P2, 88GB354P84, 88GB354P91, 88GB439P422 |
| NAPA | 17420, 259420, 259420HD | |
| WORKHORSE PARTS | 9420HD |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| CHEVROLET | C60 | 1979, 1981-1985 |
| CHEVROLET | C70 | 1979-1990 |
| CHEVROLET | W3500 TILTMASTER | 2003-2007 |
| CHEVROLET | W4500 TILTMASTER | 2003-2007 |
| CHEVROLET | W5500 TILTMASTER | 2003-2007 |
| CHEVROLET | W5500HD TILTMASTER | 2004-2007 |
| FORD | F600 | 1992-1994 |
| FORD | F600 LPO | 1993-1994 |
| FORD | F700 | 1992-1996 |
| FORD | F800 | 1993-1996, 1998 |
| FORD | F800 LPO | 1995-1996, 1998 |
| FORD | LA9000 | 1990-1997 |
| FORD | LLA9000 | 1992-1994 |
| FORD | LL9000 | 1989-1992 |
| FORD | LNT9000 | 1981-1984, 1987-1997 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
