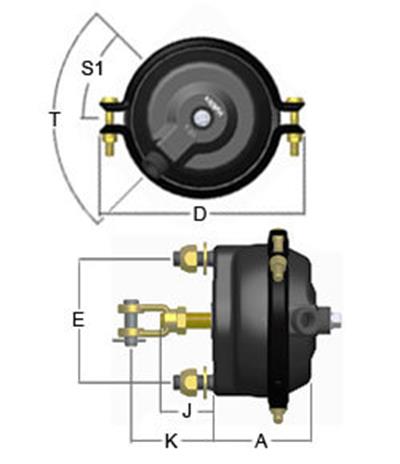

CHAMBER,BRAKE- TYPE 20 LONG STROKE, 2.5" STROKE, A 4.2", 107MM, D 8.6" 218MM, E 4.75", 120.7MM, J 10.00", K DISTANCE TO CLEVIS PIN CENTERLINE FROM FACE OF SERVICE HOUSING, T 90°, S1 0°,
$46.47
Special Order Upon Request
Interchangeable With SC20L (1)
Technical Specifications
SC20L
9 lb 4 oz
90 DD
3/8-18 NPTF
Service Chamber - Long Stroke - Size T20
2.5 IN
64 MM
64 MM
218 MM
8.6 IN
8.6 IN
4.2 IN
107 MM
107 MM
Orange Alert Stroke Indicator
Self-piloting Dust Shield
Steel Pressure Housing; Powder coated with resistance welded air ports
Sturdy Service Housing; Powder coated for corrosion resistance; Step bottom with 12 gauge steel
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40F
Self-piloting Dust Shield
Steel Pressure Housing; Powder coated with resistance welded air ports
Sturdy Service Housing; Powder coated for corrosion resistance; Step bottom with 12 gauge steel
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40F
150 PSI
Service Chamber Brake
SERVICE CHAMBER-20S-LS
Service Chamber
10 IN
1
MA36202
(0) DD
4.75 IN
120.7 MM
120.7 MM
| Manufacturer | Part Numbers | Superseded Parts |
|---|---|---|
| BLUE BIRD | 00040682 | |
| FORD MOTOR CO | 4C4Z2021AA | |
| FREIGHTLINER/DAIMLER TRK | HDX SC20LCW, HDXSC20L, MGM1621901 | HDX127200201 |
| HALDEX /BERG AIR BRAKE | SC20LCW | |
| I H C TRUCK | ZAJ1621901, ZZSC20L, ZZSC20LCW, 4C4Z2021AA | 3578799C91, 2602424C91 |
| MACK | 55541621901 | 19QE4134, 20413598 |
| MGM | 1621901 | |
| MOTORMAN HD PLUS | 901-3104 | |
| OTHER | MGM1621901, SC20L, ZAJ1621901, ZZSC20L, ZZSC20LCW, 55541621901 | MA36202, 3578799C91, 2602424C91 |
| PETERBILT | B25-3276T20 | |
| RYDER FLEET PRODUCTS | V42 1621901, V421621901 | |
| TRI-STAR FORD SOMERSET | 4C4Z2021AA | |
| VOLVO-WHITE VENDOR DIRECT | MGM1621901, MIDSC20L | |
| VOLVO/WHITE | MGM1621901, 85103654 |
Vehicle Fitment
| Make | Model | Years |
|---|---|---|
| INTERNATIONAL | 11-TON | 2004 |
| INTERNATIONAL | 4400 | * |
| INTERNATIONAL | 7-TON | 2004 |
| STERLING | 11-TON | 2004 |
| STERLING | 7-TON | 2004 |
| USPS | FREIGHTLINER 11-TON (USPS - STERLING SC8000) | 2004 |
| USPS | FREIGHTLINER 7-TON (USPS - STERLING SC8000) | 2004 |
This list of compatible vehicles and years is accurate, but it may not be complete. There may be additional vehicle applications and years compatible with this part not listed.
